Remove/install coolant temperature sensor - AR15.60-P-2711MT
ENGINE 270 in MODEL 117, 156, 176, 242, 246.2
| Remove/install | |||
| 1 | Drain coolant | AR20.00-P-1142NKB | |
| 2 | Remove charge air distributor | AR09.41-P-1310MT | |
| 3 | Disconnect electrical connections at coolant temperature sensor (B11/4) | ||

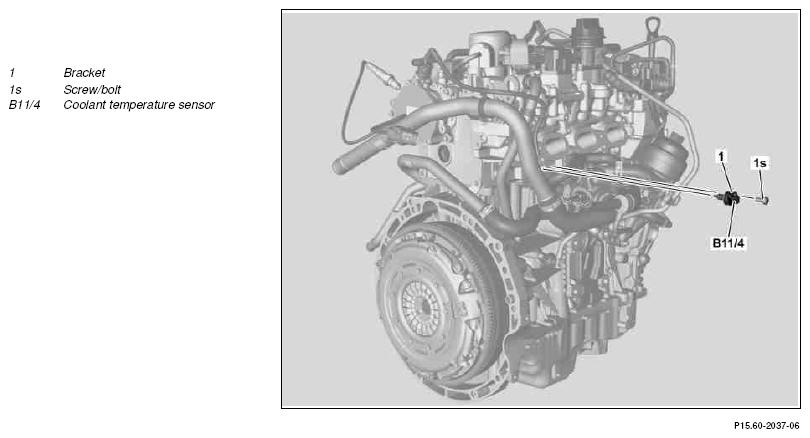

| 4 | Detach coolant temperature sensor (B11/4) at cylinder head; to do this remove screw/bolt (1s) and remove bracket (1) | ||
| 5 | Install in the reverse order | ||
| Check | |||
| 6 | Check cooling system for leaktightness | AR20.00-P-1010NKB | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform an engine test run and check engine for leaktightness |
