Remove/install camshaft Hall sensor - AR15.10-P-2000MT
ENGINE 133 in MODEL 117, 156, 176
ENGINE 270 in MODEL 117, 156, 176, 242, 246.2
| Remove/install | |||
| 1 | Remove upper engine cover | ||
| 2 | Unclip engine wiring harness at air intake pipe | ENGINE 270 in MODEL 117, 156, 176, 242, 246.2 | |
| 3.1 | Remove screw/bolts (2) at ignition coil for cylinder 1 and turn ignition coil to the side | ENGINE 133 in MODEL 117, 156, 176 When removing the Hall sensor on the exhaust camshaft (B6/16). |
|
| AR15.12-P-2003MT | |||
| 3.2 | Remove screw/bolts (2) at ignition coil for cylinder 1 and turn ignition coil with attached lines to the side | ENGINE 270 in MODEL 117, 156, 176, 242, 246.2 When removing the Hall sensor on the exhaust camshaft (B6/16). |
|
| AR15.12-P-2003MT | |||
| 4 | Disconnect electrical connection on intake camshaft Hall sensor (B6/15) or exhaust camshaft Hall sensor (B6/16) | ||

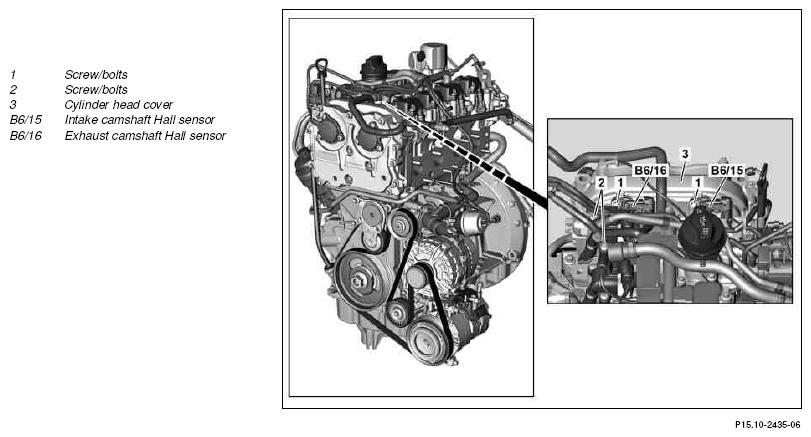

| 5 | Remove screw/bolts (1) and pull intake camshaft Hall sensor (B6/15) or exhaust camshaft Hall sensor (B6/16) out of the cylinder head cover (3) | ||
| *BA15.10-P-1002-03I | |||
| 6 | Install in the reverse order | ||
| 7 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04A | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Carry out engine test run, checking the engine for proper operation and leaktightness |
POSITION SENSOR
| Number | Designation | ENGINE 133 | ENGINE 270 | |
|---|---|---|---|---|
| BA15.10-P-1002-03I | Screw/bolt, camshaft position sensor to cylinder head cover | Nm | 8 | 8 |
