Overview of PRE-SAFE system components - GF91.40-P-9997KN
MODEL 117, 156, 176, 242, 246 with CODE 299 (PRE-SAFE® system)

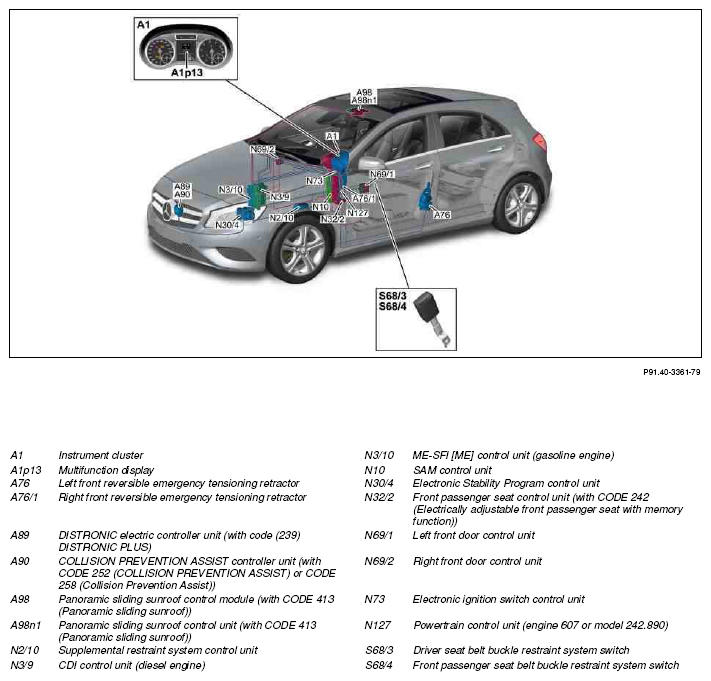

Illustrated: model 176
| Component description for instrument cluster | A1 | GF54.30-P-6000KN | |
| Component description for front reversible emergency tensioning retractors | A76, A76/1 | GF91.40-P-4020KN | |
| Component description for DISTRONIC electric controller unit | MODEL 117, 156, 176, 242 (except 242.890), 246 with CODE 239 (DISTRONIC PLUS) with CODE 299 (PRE-SAFE® system) A89 |
GF30.30-P-3213KN | |
| COLLISION PREVENTION ASSIST controller unit, component description | MODEL 117, 156, 176 as of model year 2016 with CODE 258 (COLLISION PREVENTION ASSIST) with CODE 299 (PRE-SAFE® system) MODEL 117, 156, 176 up to model year 2016 with CODE 258 (COLLISION PREVENTION ASSIST) with CODE 299 (PRE-SAFE® system) MODEL 176, 242, 246 up to model year 2016 with CODE 252 (COLLISION PREVENTION ASSIST) with CODE 299 (PRE-SAFE® system) MODEL 242, 246 as of model year 2015 with CODE 258 (COLLISION PREVENTION ASSIST) with CODE 299 (PRE-SAFE® system) MODEL 242, 246 up to model year 2015 with CODE 258 (COLLISION PREVENTION ASSIST) with CODE 299 (PRE-SAFE® system) A90 |
GF30.30-P-3214KN | |
| Component description for panoramic sliding roof control module | MODEL 117, 156, 176, 246 with CODE 299 (PRE-SAFE® system) with CODE 413 (Automatic panoramic sliding sunroof) A98, A98n1 |
GF77.20-P-4106KN | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080KN | |
| Component description for CDI control unit | MODEL 117, 156, 176, 246 with ENGINE 651 with CODE 299 (PRE-SAFE® system) N3/9 | GF07.16-P-6000OLB | |
| MODEL 117, 156, 176, 246 with ENGINE 607 with CODE 299 (PRE-SAFE® system) N3/9 | GF07.16-P-6000ORA | ||
| Component description for ME-SFI (ME) control unit | MODEL 117, 156, 176 with ENGINE 133.9 with CODE 299 (PRE-SAFE® system) N3/10 | GF07.61-P-6000MTA | |
| MODEL 117, 156, 176, 246 with ENGINE 270.9 with CODE 299 (PRE-SAFE® system) N3/10 | GF07.61-P-6000MT | ||
| MODEL 242 with ENGINE 270.9 with CODE 299 (PRE-SAFE® system) with CODE 924 (Bivalent natural gas drive) N3/10 | GF07.61-P-6000MTC | ||
| SAM control unit, component description | N10 | GF54.21-P-4157KN | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119KN | |
| Component description for front passenger seat control unit | MODEL 117, 156, 176, 242, 246 with CODE 242 (Front passenger seat, electrically adjustable with memory function) with CODE 299 (PRE-SAFE® system) N32/2 |
GF91.29-P-5241KN | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001KN | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009KN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001KN | |
| Drivetrain control unit, component description | MODEL 117, 156, 176, 246 with ENGINE 607 with CODE 299 (PRE-SAFE® system) N127 | GF54.21-P-2141ORA | |
| MODEL 242.890 with ENGINE 780.990 with CODE 299 (PRE-SAFE® system) N127 | GF54.21-P-2141KN | ||
| Table of contents for PRE-SAFE function description | GF91.40-P-0997KN |
