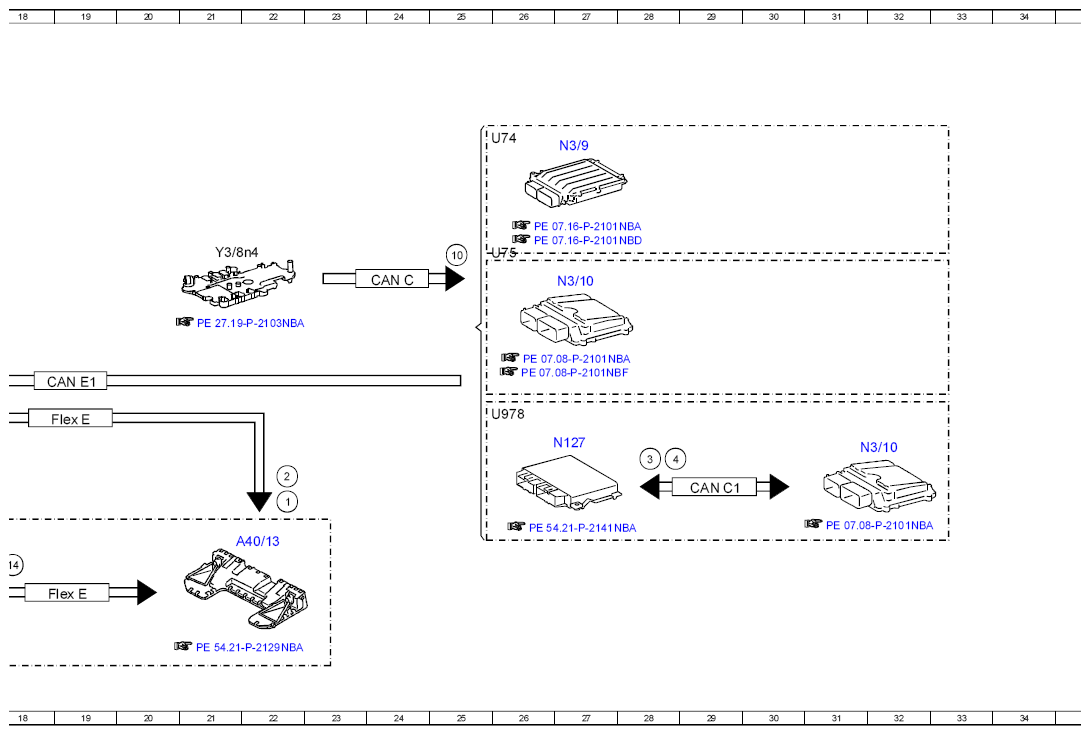

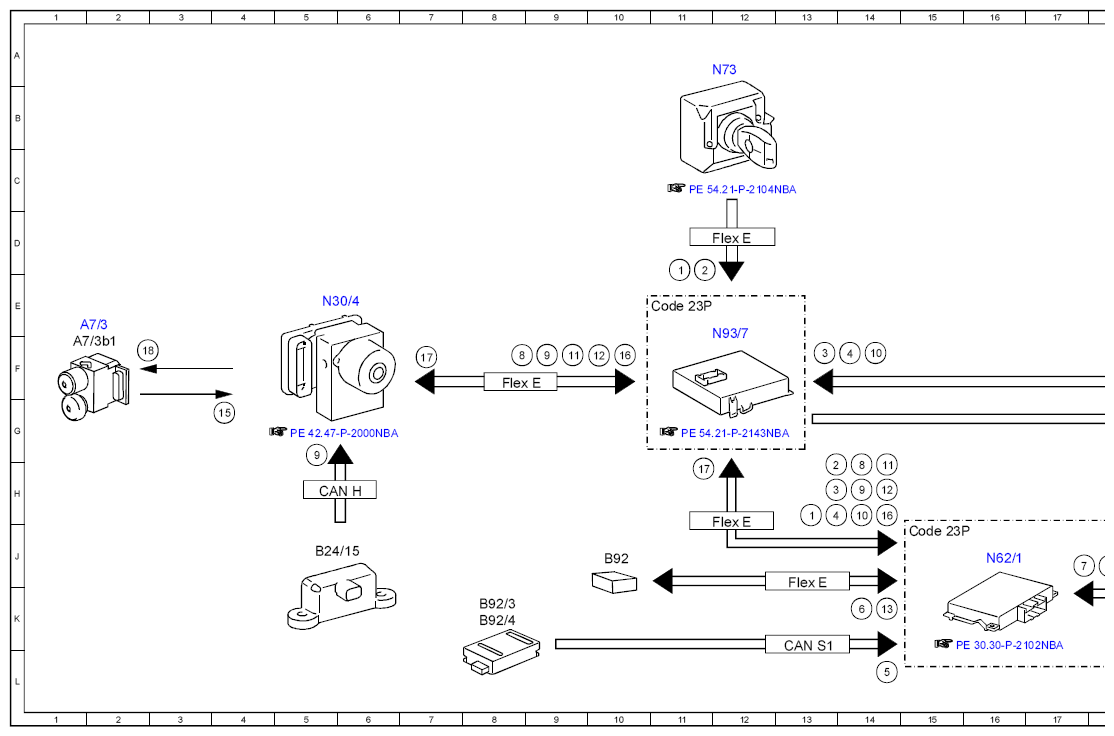

Electrical Function Schematic For BAS Plus - PE30.30-P-2063-97NBA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 as of model year 2016 with CODE 268 (Brake Assist System Plus) with CODE 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q)
MODEL 292 with CODE 268 (Brake Assist System Plus) with CODE 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Brake Assist System PLUS function, signal | 11D |
| 1 | Brake Assist System PLUS function, signal | 13H |
| 1 | Brake Assist System PLUS function, signal | 22H |
| 10 | Gear range, status | 14F |
| 10 | Gear range, status | 25D |
| 10 | Gear range, status | 14H |
| 11 | Wheel speed, signal | 9F |
| 11 | Wheel speed, signal | 14H |
| 12 | Wheel rotation direction, signal | 14H |
| 12 | Wheel rotation direction, signal | 10F |
| 13 | Far range radar sensor, signal | 14K |
| 14 | Object information, data package | 18J |
| 15 | Front axle brake pressure sensor, signal | 4G |
| 16 | Braking torque, signal | 14H |
| 16 | Braking torque, signal | 10F |
| 17 | Service brake braking torque, request | 7F |
| 17 | Service brake braking torque, request | 11H |
| 18 | Traction system hydraulic unit, actuation | 2F |
| 2 | Brake Assist System PLUS cross-traffic function, signal | 11D |
| 2 | Brake Assist System PLUS cross-traffic function, signal | 13G |
| 2 | Brake Assist System PLUS cross-traffic function, signal | 22H |
| 3 | Engine running, signal | 13F |
| 3 | Engine running, signal | 13H |
| 3 | Engine running, signal | 28H |
| 4 | Drivetrain operational, signal | 14F |
| 4 | Drivetrain operational, signal | 13H |
| 4 | Drivetrain operational, signal | 28H |
| 5 | Close range radar sensors, signal | 14L |
| 6 | Radar sensor system operational, status | 14K |
| 7 | Stereo multifunction camera, status | 17J |
| 8 | ESP®, status | 8F |
| 8 | ESP®, status | 14H |
| 9 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 5G |
| 9 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 9F |
| 9 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 14H |
| A40/13 | Stereo multifunction camera | 21J |
| A7/3 | Traction system hydraulic unit | 2E |
| A7/3b1 | Front axle brake pressure sensor | 1F |
| B24/15 | Yaw rate sensor for lateral and longitudinal acceleration | 5J |
| B92 | Front long-range radar sensor | 10J |
| B92/3 | Left front bumper radar sensor | 8K |
| B92/4 | Right front bumper radar sensor | 8K |
| CAN C | Drive train CAN | 24E |
| CAN C1 | Engine CAN | 29H |
| CAN E1 | Chassis CAN 1 | 19F |
| CAN H | Vehicle dynamics CAN | 5H |
| CAN S1 | Radar CAN 1 | 13L |
| Code 23P | Driver assistance package | 11E |
| Code 23P | Driver assistance package | 15J |
| Flex E | Chassis FlexRay | 12D |
| Flex E | Chassis FlexRay | 8F |
| Flex E | Chassis FlexRay | 12J |
| Flex E | Chassis FlexRay | 19K |
| Flex E | Chassis FlexRay | 13J |
| Flex E | Chassis FlexRay | 19G |
| N127 | Drivetrain control unit | 27G |
| N3/10 | ME-SFI [ME] control unit | 27E |
| N3/10 | ME-SFI [ME] control unit | 32G |
| N3/9 | CDI control unit | 27C |
| N30/4 | Electronic Stability Program control unit | 5E |
| N62/1 | Radar sensors control unit | 16J |
| N73 | Electronic ignition switch control unit | 12A |
| N93/7 | Chassis gateway control unit | 12F |
| U74 | Valid for diesel engines | 25B |
| U75 | Valid for gasoline engines | 25D |
| U978 | Valid for hybrid drive | 25G |
| Y3/8n4 | Fully integrated transmission control unit | 21D |
