Automatic Engine Start To Maintain Refrigeration Temperature (TT 04/16-E)
WARNING: This page is about the Sprinter 2500, Van Cargo, which is a different variant/trim than selected.
Publication date: 2016-04-14Reference number: TT 04/16-E
AUTOMATIC ENGINE START TO MAINTAIN REFRIGERATION TEMPERATURE
COMMERCIAL VANS TECHNICAL TOPICS; APRIL 2016
Reference Number(s): TT 04/16-E, Date of Issue:
April 14, 2016

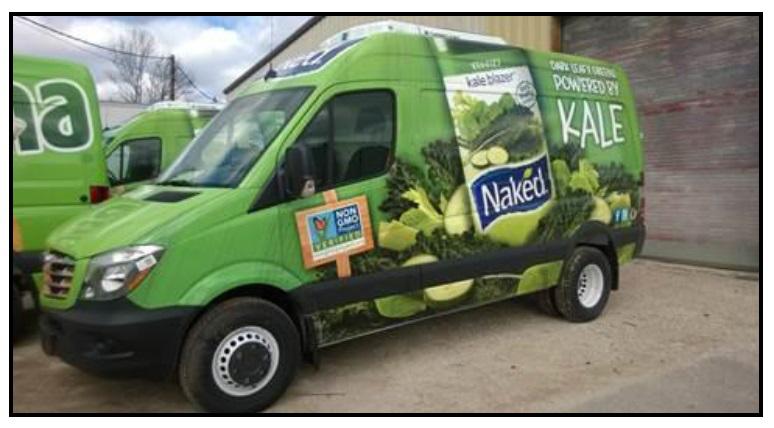

| SPRINTER: | NAKED JUICE / TROPICANA (RYDER LEASED) 906 |
| GROUP: | 54.21 - Control unit / base module |
EXPLANATION
Van based refrigeration units leased through Ryder may require dealer servicing. These vans are equipped with a PSM program in which the engine may start automatically with the key on (key position 2) and the refrigeration unit turned on. Engine start is controlled through the PSM by a signal from the refrigeration controller when refrigeration is required.
ACTION
Do NOT work under the hood with the key in the ignition and switched on! When working under the hood / performing maintenance remove the key from the ignition and put it in a safe place.
