Remove/Install All-Wheel Drive Control Unit - Ar28.19-D-0009M
Model 906
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | |
| Remove/install | ||

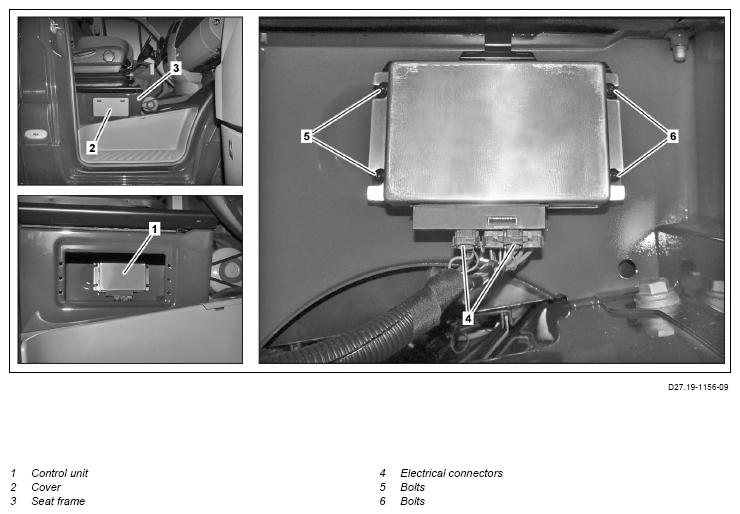

| 1 | Remove cover (2) | |
| 2 | Release and disconnect electrical connections (4) | |
| 3 | Remove bolts (5) | |
| 4 | Loosen screws/bolts (6), remove control unit (1) toward rear and guide out of seat base (3) | |
| 5 | Install in the reverse order |
