Remove/Install Temperature Sensor In Bathroom Unit - Ar83.70-S-5985JC

MODEL 906.633 with CODE (ZO1) Camper James Cook Compact with CODE (ZO2) Camper James Cook Classic

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on carrying out repair work in the vehicle interior	Model 906	AH68.00-N-0001-01S
1	Open sliding door in bathroom unit

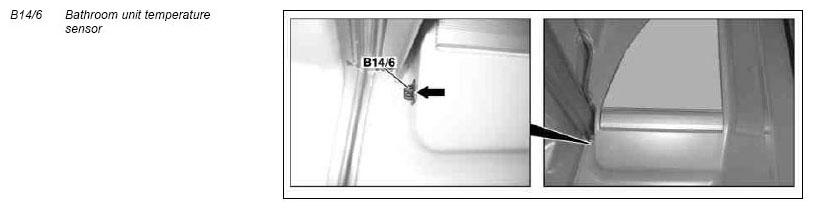

2	Remove bathroom unit temperature sensor (B14/6)	To do this, release bathroom unit temperature sensor (B14/6) (arrow) and disconnect electrical connector.
		Long wedge	Fig 1
3	Install in the reverse order
	Checking
4	Perform a function test

Fig 1: Long Wedge (115 589 03 59 00)
