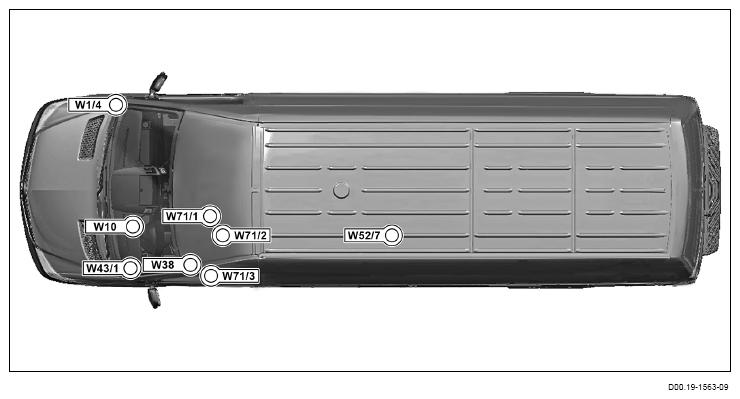

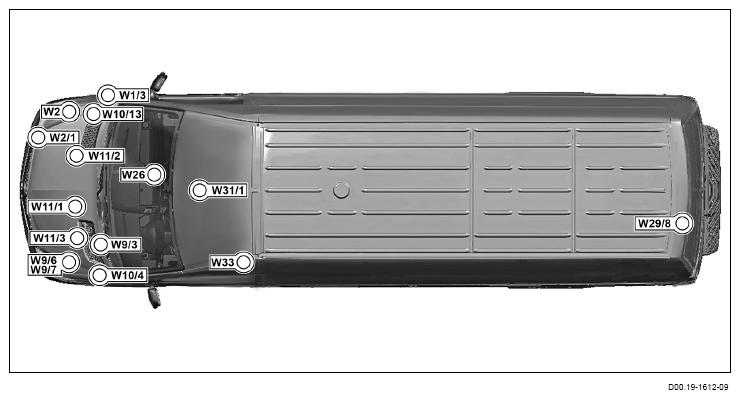

Location And Assignment Of Ground Points - GF00.19-D-2000AB
Model 906 as of 7/1/13
| W1/3 | Ground point (CLS cockpit 1) | Location | GF00.19-D-2001-13AA |
| Assignment | PE54.00-D-2000AP | ||
| W1/4 | HLS cockpit ground point | Location | GF00.19-D-2001-13AA |
| Assignment | PE54.00-D-2000AP | ||
| W2 | Right front lamp unit ground point | Location | GF00.19-D-2001-17AA |
| Assignment | PE54.00-D-2000AL | ||
| W2/1 | RHD right front ESP® ground point | Location | GF00.19-D-2001-17AA |
| Assignment | PE42.45-D-2101AF | ||
| W9/3 | Left front ESP® ground point | Location | GF00.19-D-2001-17AA |
| Assignment | PE42.45-D-2101AF | ||
| W9/6 | Left front lamp unit ground point | Location | GF00.19-D-2001-17AA |
| Assignment | PE54.00-D-2000AK | ||
| W9/7 | Left front ground point 2 | Location | GF00.19-D-2001-17AA |
| Assignment | PE54.00-D-2000AK | ||
| W10 | Battery ground point | Location | GF00.19-D-2001-13AA |
| Assignment engine 642 with code E33 (Battery management) | PE15.00-D-2000AP | ||
| Assignment engine 651 except code MH5 (Low-emission engine EPA 14/CARB) | PE15.00-D-2000AO | ||
| Assignment engine 651 with code MH5 (Low-emission engine EPA 14/CARB) | PE15.00-D-2000AT | ||
| Assignment with code H13 (Additional heat exchanger in passenger/load compartment), with code HH2 (Electric auxiliary air heater) | PE83.25-D-2101AB | ||
| Assignment with code H08 (Heavy-duty roof air conditioner), with code HH2 (Electric auxiliary air heater), with code HH7 (Basic roof air conditioner) | PE83.25-D-2101AB | ||
| Assignment with engine 642 | PE15.00-D-2000AS | ||
| W10/4 | Additional battery ground point | Location | GF00.19-D-2001-17AA |
| Assignment of left-hand drive vehicle | PE15.00-D-2401AA | ||
| W10/13 | Additional battery ground point RHD | Location | GF00.19-D-2001-17AA |
| Assignment of right-hand drive vehicle | PE15.00-D-2401AB | ||
| Assignment | PE54.15-D-2520AA | ||
| W11/1 | Engine ground point | Location | GF00.19-D-2001-17AA |
| Assignment with engine 642 with code MH3 (Low-emission engine EPA 13/CARB) | PE07.16-D-2101AU | ||
| Assignment with engine 651 with code MH5 (Low-emission engine EPA 14/CARB) | PE07.16-D-2101AX | ||
| Assignment with engine 642 with code MH7 (Low-emission engine EPA 16/CARB) | PE07.16-D-2101AZ | ||
| W11/2 | Right engine ground point | Location | GF00.19-D-2001-17AA |
| Assignment | PE07.61-D-2101AG | ||
| W11/3 | Left engine ground point | Location | GF00.19-D-2001-17AA |
| Assignment | PE07.61-D-2101AG | ||
| W26 | Ground point (airbag) | Location | GF00.19-D-2001-13AA |
| Assignment except code SH6 (Thoraxbag for driver (in backrest)), except code SH7 (Thoraxbag for driver and front passenger (in backrest)), except code SH9 (Windowbag for driver and front passenger) | PE91.60-D-2101AF | ||
| Assignment with code SH6 (Thoraxbag for driver (in backrest)), with code SH7 (Thoraxbag for driver and front passenger (in backrest)), with code SH9 (Windowbag for driver and front passenger) | PE91.60-D-2101AG | ||
| W29/8 | Left D-pillar ground point | Location | GF00.19-D-2001-34AA |
| Assignment | PE54.00-D-2000AN | ||
| W31/1 | Roof antenna ground point | Location | GF00.19-D-2001-19AA |
| Assignment | PE82.62-D-2103AD | ||
| W33 | Filler neck grounding | Location | GF00.19-D-2001-20AA |
| Assignment | PE54.00-D-2000AR | ||
| W38 | Roof ground point | Location | GF00.19-D-2001-19AA |
| Assignment | PE54.00-D-2000AO | ||
| W43/1 | Left firewall ground point | Location | GF00.19-D-2001-13AA |
| Assignment | PE54.00-D-2000AQ | ||
| W52/7 | Left rear crossmember ground point | Location | GF00.19-D-2001-32AA |
| Assignment | PE54.00-D-2000AM | ||
| W71/1 | Driver seat frame ground point 1 | Location | GF00.19-D-2001-18AA |
| Assignment | PE54.00-D-2000AR | ||
| W71/2 | Driver seat frame ground point 2 | Location | GF00.19-D-2001-18AA |
| Assignment | PE54.00-D-2000AR | ||
| W71/3 | Driver seat frame ground point 3 | Location | GF00.19-D-2001-13AA |
| Assignment | PE54.00-D-2000AS | ||
| Location of ground points - Vehicle interior | GF00.19-D-2001-13AA | ||
| Location of ground points - Engine compartment | GF00.19-D-2001-17AA | ||
| Location of ground points - Seat base | GF00.19-D-2001-18AA | ||
| Location of ground points - Roof | GF00.19-D-2001-19AA | ||
| Location of ground points - Sidewall | GF00.19-D-2001-20AA | ||
| Location of ground points - frame | GF00.19-D-2001-32AA | ||
| Location of ground points - rear end | GF00.19-D-2001-34AA |
