Accelerator Pedal Sensor, Component Description - GF30.20-D-2010H
ENGINE 642 in MODEL 906 with TRANSMISSION 722.6/9
ENGINE 651 in MODEL 906 with TRANSMISSION 722.9
Shown on model 906

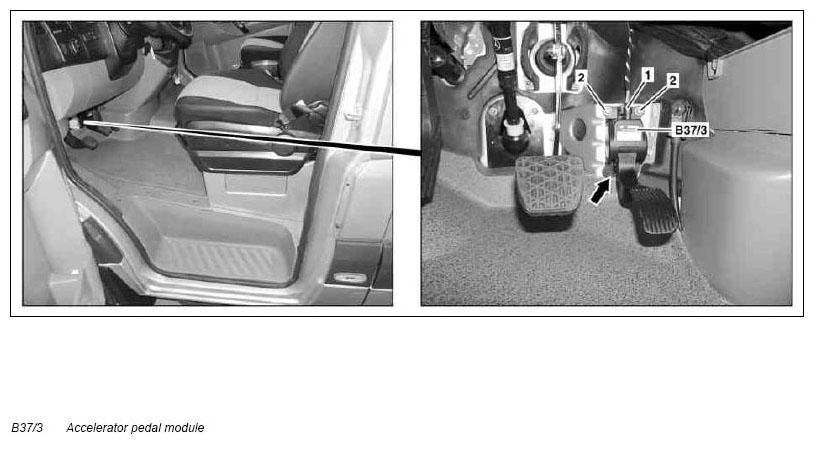

Location
The accelerator pedal module (for model 639 (B37/4)) is located in the driver footwell at the front right.
Task
The accelerator pedal module detects the accelerator pedal position and passes an appropriate voltage signal to the ME-SFI control unit (N3/23) or CDI control unit (N3/28) (for engine 651.9) or CDI control unit (N3/30) (for engine 642.8) or CDI control unit (N3/20) (for engine 642.9).
Body
The accelerator pedal module consists of a Hall element with integrated electronics.
Function
The Hall element integrated in the accelerator pedal module detects the actuation speed and the current position of the accelerator pedal at the position of the permanent magnet attached to the pedal axis.
