Remove/install sidebag sensor - AR91.60-P-0710W

MODEL 172.4

Shown on side of vehicle

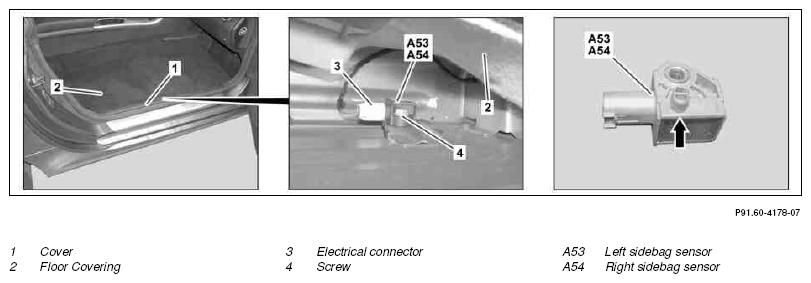

Fig 1: Identifying Sidebag Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove left or right seat		AR91.10-P-1000W
2	Remove paneling (1)	Mounting wedge	Figure
3	Fold back floor covering (2) until left sidebag sensor (A53) or right sidebag sensor (A54) is accessible
4	Disconnect electrical connector (3)
5	Unscrew bolt (4)		*BA91.60-P-1019-01A
6	Remove left sidebag sensor (A53) or right sidebag sensor (A54)	Insert left sidebag sensor (A53) or right sidebag sensor (A54) with guide pin (arrow) into longitudinal member.
7	Install in the reverse order
8	Connect Star Diagnosis and check Supplemental Restraint System (SRS)	When replacing left sidebag sensor (A53) or right sidebag sensor (A54).	AD00.00-P-2000-04A

AIRBAG

Number	Designation		Model 172
BA91.60-P-1019-01A	Screw/bolt, sidebag sensor to longitudinal member	Nm	8

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
