Remove/install side deployment pressure sensor - AR91.60-P-0760W

MODEL 172.4

Shown on left door

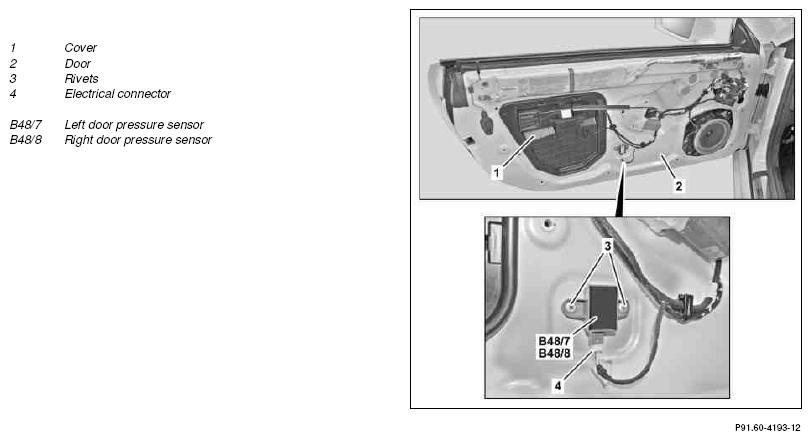

Fig 1: Identifying Side Deployment Pressure Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove left or right door lining	Close crank window before electrical connectors are disconnected from left door control unit or right door control unit.	AR72.10-P-1000W
2	Disconnect ground line at the on-board electrical system battery		AR54.10-P-0003W
3	Loosen cover (1) from front door (2)	Check sealing profile at cover (1) for damage, replace if necessary.
		Sealing cord	*BR00.45-Z-1086-01A
4	Disconnect electrical connector (4)
5	Drill off heads of rivets (3)	Rechargeable drill/screwdriver   Only use approved rivets (3). Hand riveting tool
6	Remove left door pressure sensor (B48/7) or right door pressure sensor (B48/8)
7	Completely remove rivet residues and drilling chips from front door (2).	Remove all rivet residue. Remaining rivet residues cause corrosion damage on front door (2). Wet/dry vacuum cleaner
8	Install in the reverse order
9	Connect Star Diagnosis and check Supplemental Restraint System (SRS)	When replacing left door pressure sensor (B48/7) or right door pressure sensor (B48/8).	AD00.00-P-2000-04A

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1086-01A	Soft top frame sealing profile with metal core 35 m, SEALANT/butyl Bostik 1127	A 005 989 12 71 10
