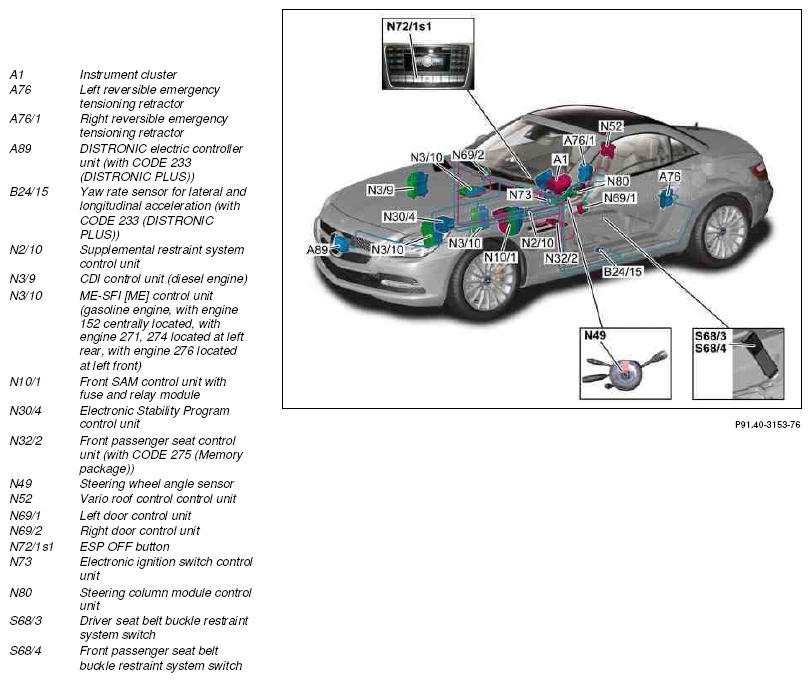

Overview of PRE-SAFE system components - GF91.40-P-9997RD
MODEL 172.4 with CODE 299 (PRE-SAFE® system)
| Component description for instrument cluster | A1 | GF54.30-P-6000RD | |
| Component description for front reversible emergency tensioning retractors | A76, A76/1 | GF91.40-P-4020RD | |
| Component description for DISTRONIC electric controller unit | MODEL 172.4 with CODE 233 (DISTRONIC PLUS) with CODE 299 (PRE-SAFE® system) A89 |
GF30.30-P-3213RD | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | MODEL 172.4 (except 172.475) with CODE 233 (DISTRONIC PLUS) with CODE 299 (PRE-SAFE® system) MODEL 172.475 with CODE 299 (PRE-SAFE® system) B24/15 |
GF42.45-P-4810RD | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RD | |
| Component description for CDI control unit | MODEL 172.4 with ENGINE 651.9 with CODE 299 (PRE-SAFE® system) N3/9 |
GF07.16-P-6000OLK | |
| Component description for ME-SFI (ME) control unit | MODEL 172.4 with ENGINE 152.9 with CODE 299 (PRE-SAFE® system) N3/10 |
GF07.61-P-6000MMI | |
| MODEL 172.4 with ENGINE 271.861 with CODE 299 (PRE-SAFE® system) N3/10 |
GF07.61-P-6000MGA | ||
| MODEL 172.4 with ENGINE 274.9 with CODE 299 (PRE-SAFE® system) N3/10 |
GF07.61-P-6000MRE | ||
| MODEL 172.4 with ENGINE 276.9 with CODE 299 (PRE-SAFE® system) N3/10 |
GF07.61-P-6000MMD | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RD | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RD | |
| Component description for front passenger seat control unit | MODEL 172.4 with CODE 275 (Memory package) with CODE 299 (PRE-SAFE® system) N32/2 |
GF91.29-P-5241RD | |
| Left door control unit, component description | N69/1 | GF72.29-P-4143RD | |
| Right door control unit, component description | N69/2 | GF72.29-P-4144RD | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040RD | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RD | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RD | |
| Table of contents for PRE-SAFE function description | GF91.40-P-0997RD |
