Remove/install crankshaft Hall sensor - AR15.12-P-2136MR
ENGINE 274 in MODEL 172, 204, 207
| Remove/install | |||
| 1 | Remove lower engine compartment paneling | Engine 274 in model 172 | AR61.20-P-1105W |
| Engine 274 in model 204.9 | AR61.20-P-1105CY | ||
| Engine 274 in model 204.0/2/3, 207 | AR61.20-P-1105EW | ||
| 2 | Remove catalytic converter | Engine 274 in model 204.9 | AR49.10-P-7100MR |
| Engine 274 in model 172 | AR49.10-P-7142MRE | ||
| 3 | Remove CAT bracket on right crankcase | Engine 274 in model 204.9 | |
| 4.1 | Take out heat shield (1) | Engine 274 in model 204.9 | |
| 4.2 | Remove screw/bolt (1s) and heat shield (1) | Engine 274 in model 172, 204.0/2/3, 207 | |

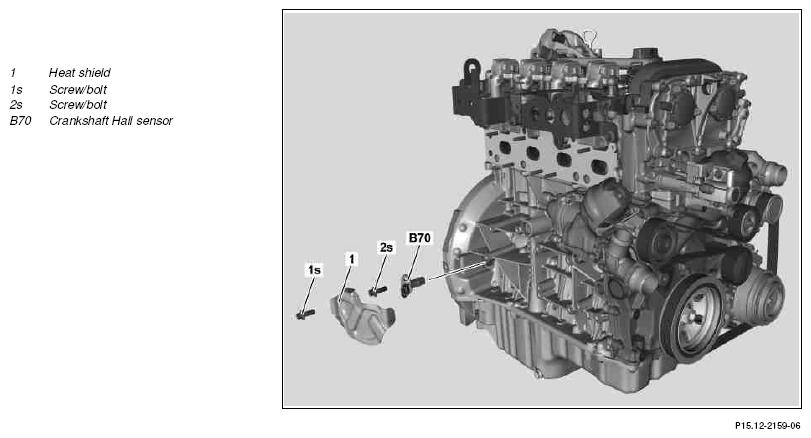

| 5 | Detach heat grommets from crankshaft Hall sensor (B70) and push to the side at electrical line | Engine 274 in model 172, 204.0/2/3, 207 | |
| 6 | Disconnect electrical connection on crankshaft Hall sensor (B70) | ||
| 7 | Remove screw/bolt (2) and take out crankshaft Hall sensor (B70) | If a sealing ring is installed |
|
| *BA15.10-P-1001-03I | |||
| 8 | Install in the reverse order | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform an engine test run and check engine for proper function |
POSITION SENSOR
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA15.10-P-1001-03I | Screw/bolt, crankshaft position sensor to crankcase | Nm | 9 |
