Remove/install crankshaft Hall sensor - AR15.12-P-2136MMI
ENGINES 152.9 in MODEL 172.4
| Remove/install | |||
| 1 | Remove engine compartment paneling | AR61.20-P-1105W | |
| 2 | Remove air filter housing | AR09.10-P-1150MMI | |
| 3 | Remove soundproofing on LH cylinder head cover | ||
| 4 | Detach electrical connector at crankshaft Hall sensor (B70) | ||

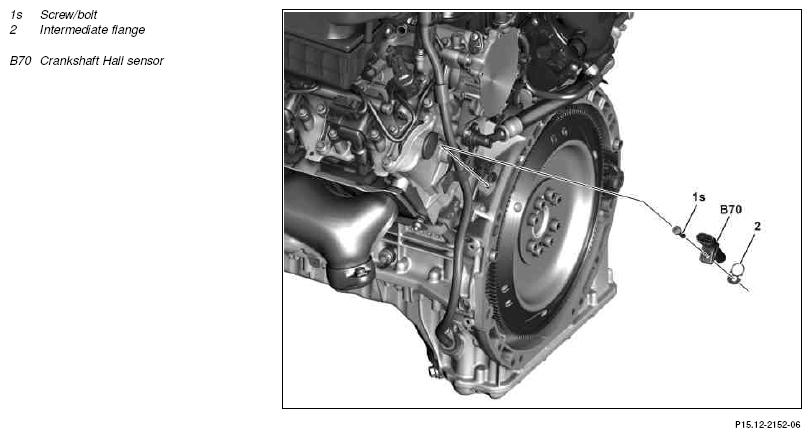

| 5 | Remove crankshaft Hall sensor (B70) with intermediate flange (2); to do this remove screw/bolt (1s) | *BA15.10-P-1001-03E | |
| 6 | Install in the reverse order | ||
| Checking | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 7 | Conduct engine test run and check engine for leaks |
POSITION SENSOR
| Number | Designation | Engine 152 | |
|---|---|---|---|
| BA15.10-P-1001-03E | Screw/bolt, crankshaft Hall sensor to crankcase | Nm | 8 |
