Remove/install coolant temperature sensor - AR15.60-P-2711MMI
ENGINES 152.9 in MODEL 172.4
| Remove/install | |||
| 1 | Drain coolant | AR20.00-P-1142W | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| 2 | Remove air filter housing | AR09.10-P-1150MMI | |
| 3 | Remove soundproofing on left cylinder head cover | ||
| 4 | Disconnect electrical connection on crankshaft Hall sensor | AR15.12-P-2136MMI | |
| 5 | Disconnect electrical connectors at coolant temperature sensor (B11/4) | ||

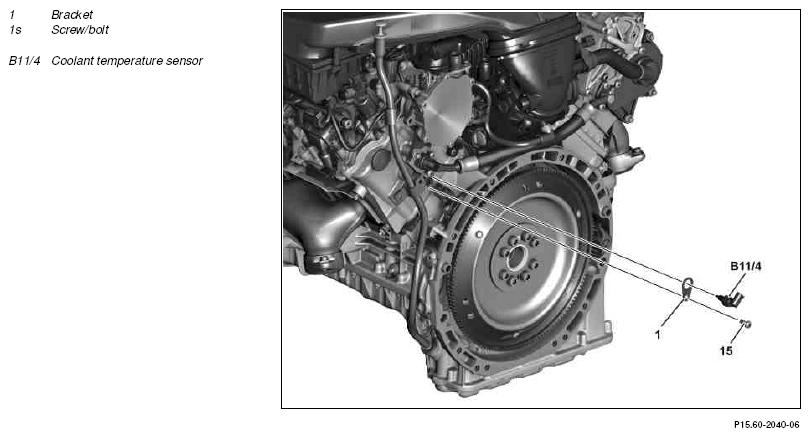

| 6 | Detach coolant temperature sensor (B11/4) at cylinder head; to do this remove screw/bolt (1s) and remove bracket (1) | ||
| 7 | Install in the reverse order | ||
| Checking | |||
| 8 | Inspect cooling system for leaks | AR20.00-P-1010W | |
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 9 | Conduct engine test run and check engine for leaks |
