Remove/install alternator - AR15.40-P-5032MRE
ENGINE 274 in MODEL 172
| Remove/install | |||
| 1 | Detach ground line from battery | AR54.10-P-0003W | |
| 2 | Remove engine cover | ||
| 3 | Remove engine air intake duct upstream of air filter | ||
| 4 | Remove poly-V belt | AR13.20-P-0001MR | |
| 5 | Lock poly-V belt tensioning device | AR13.20-P-0001MR | |
| 6 | Remove guide pulley for poly-V belt | AR13.20-P-0001MR | |
| 7 | Remove lower engine compartment paneling | AR61.20-P-1105W | |

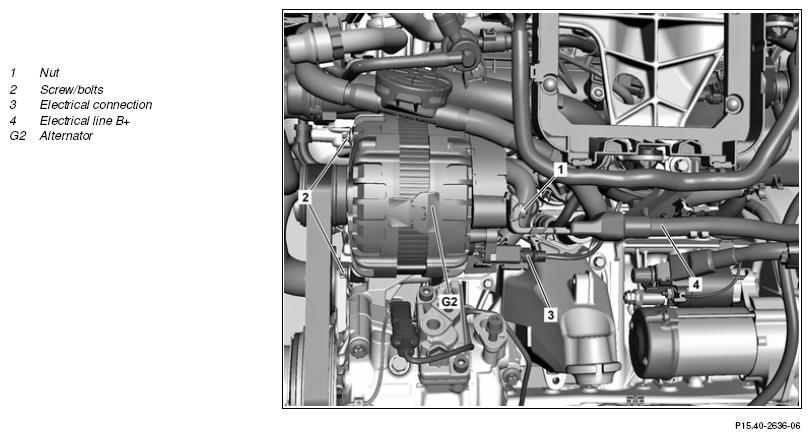

| 8 | Disconnect electrical connection (3) at alternator (G2) | ||
| 9 | Detach contact protection at alternator (G2) | ||
| 10 | Unscrew nut (1) and detach electrical line B+ (4) at alternator (G2) | *BA15.40-P-1002-01F | |
| 11 | Remove screw/bolts (2) and pull alternator (G2) upwards and out | Alternator tightening procedure |
AR15.40-P-5032-03MR |
| *BA15.40-P-1001-01F | |||
| 12 | Install in the reverse order |
ALTERNATOR
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA15.40-P-1001-01F | Bolt, alternator to timing case | Nm | 20 |
ALTERNATOR
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA15.40-P-1002-01F | Nut, circuit B+ to alternator | Nm | 15 |
