Torque converter lockup clutch regulating valve, location/task/ function - GF27.60-P-5123G: Notes

TRANSMISSION 722.6

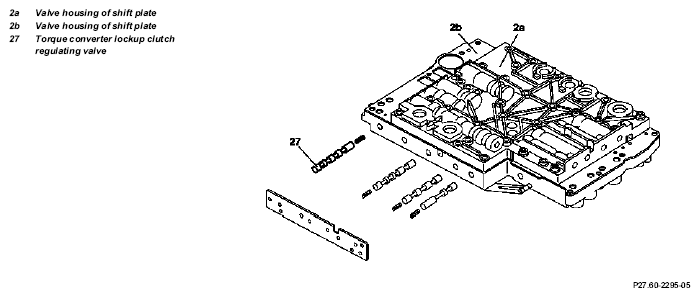

Fig 1: Locating Torque Converter Lockup Clutch Regulating Valve Components

Courtesy of MERCEDES-BENZ USA

	Torque converter lockup clutch regulating valve, location	In the valve housing of the shift plate.
	Torque converter lockup clutch regulating valve, task	Hydraulic control of the torque converter lockup clutch and distribution of the lubricating oil.
	Torque converter lockup clutch regulating valve, function		GF27.60-P-5123-01G
