Shift pressure shift valve, location / task / function - GF27.60-P-5136G: Notes
TRANSMISSION 722.6

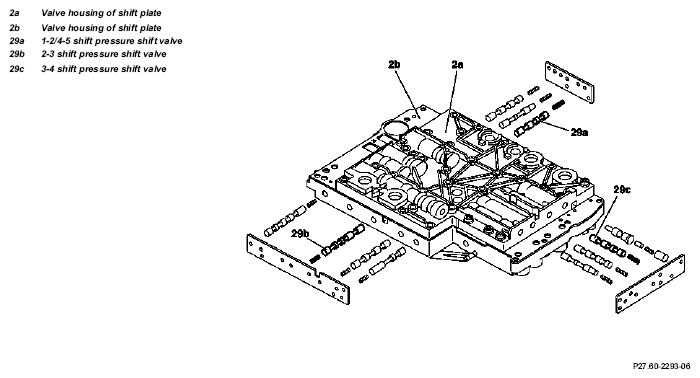

| Shift pressure shift valve, location | Each shift group possesses one shift pressure shift valve. The 1-2/4-5 shift pressure shift valves (29a) and 2-3 shift pressure shift valve (29b) are installed in the valve housing of the shift plate (2b), the 3-4 shift pressure shift valve (29c) is installed in the valve housing of the shift plate (2a). | ||
| Shift pressure shift valve, task | To assign shift pressure to the engaging shift actuator and to assign the overlap pressure, controlled by the overlap regulating valve, to the disengaging shift actuator. | ||
| Shift pressure shift valve, function | GF27.60-P-5136-04G |
