Position display, task - GF27.19-P-5129-02PZ

Shown on Model 203

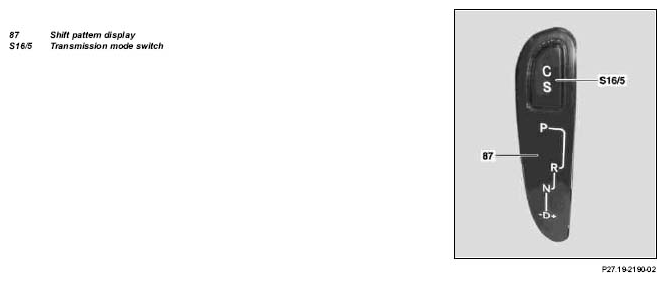

Fig 1: Identifying Shift Pattern Display And Transmission Mode Switch - Shown On Model 203
G04732566Courtesy of MERCEDES-BENZ USA

The task of the position display is to display optically the position of the selector lever or selected gear range and the program selection performed at the transmission mode switch (S16/5) (gear currently shifted not displayed).

The shift pattern display shows the possible selector lever positions and their sequence in the form of symbols.
