Position display, task - GF27.19-P-5129-02RM
Transmission 722.6 in model 209.376 up to 31.05.03, 211.076, 230.474 up to 31.08.03
To display visually the position of the selector lever, the selected gear range (with program selection "W/S") or the gear engaged (with program selection "M") and the program selection performed at the transmission mode switch (S16/5). The shift pattern diagram displays the possible selector lever positions and their sequence.

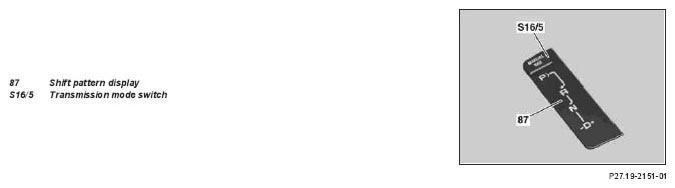

Shown on model 230.474
