Seat ventilation blower regulator, location/task/design/function - GF91.30-P-3102R
MODEL 230 with CODE (401a) Seat ventilation of front seats

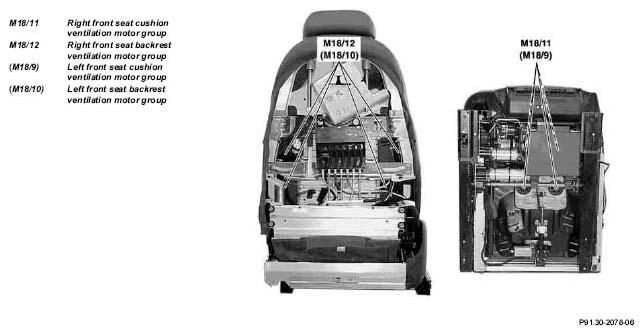

Shown on right front seat
| Seat ventilation blower regulator, location | The left front seat ventilation blower regulator (N29/5) and the right front seat blower regulator (N29/6) are located in the driver/passenger seat backrests. | ||
| Seat ventilation blower regulator, purpose | The left front seat blower regulator (N29/5) and the right front seat blower regulator (N29/6) control the speed of the ventilation motors, depending on the control voltage from the seat control module. | ||
| Seat ventilation blower regulator, design | The left front seat blower regulator (N29/5) and the right front seat blower regulator (N29/6) consist of electronics in a plastic casing with eight connections. | ||
| Seat ventilation blower regulator, function | The integrated electronics in the left front seat blower regulator (N29/5)
and the right front seat blower regulator (N29/6)
keep the voltage supply to the ventilation motors constant at all times in accordance with the actuation voltage from the left front seat adjustment control module with memory (N32/1)
and the right front seat adjustment control module with memory (N32/2)
. The blower regulators are designed as non-overloading linear controllers. |
