Multi-contour seat (MCS), function - GF91.25-P-0001R

MODEL 230

with CODE (404b) Multi-contour backrest driver seat

with CODE (405b) Multi-contour backrest passenger seat

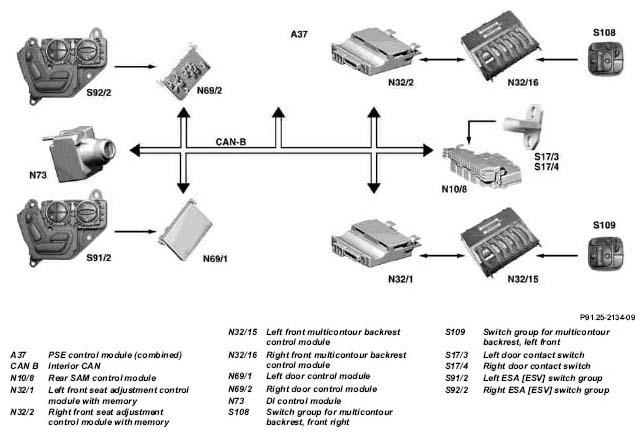

Fig 1: Multi-Contour Seat Function Diagram

Courtesy of MERCEDES-BENZ USA

Networking of the components of the multi-contour backrest

Multi-contour backrests for driver seat/front passenger seat

The multi-contour backrests for driver seat (code 404b), front passenger seat

(Code 405b) permit an individual adjustment of the respective seat backrest by filling and emptying air from a total of four double chamber air cushions. The contour and the surface hardness of the seat backrest can be adjusted.

The filling and emptying of air in the individual air cushion groups are controlled either manually by:

switch group for right front multi-contour backrest (S108)
switch group for left front multi-contour backrest (S109) or automatically by the:
control module for left front multi-contour backrest (N32/15)
control module for right front multi-contour backrest (N32/16)

if the dynamic lumbar support function is executed.

Memory feature

For the driver seat/front passenger seat it is possible to store and call up seat backrest adjustments (air cushion pressure values) via the memory feature .

Lumbar support: Curvature of spine in lumbar region

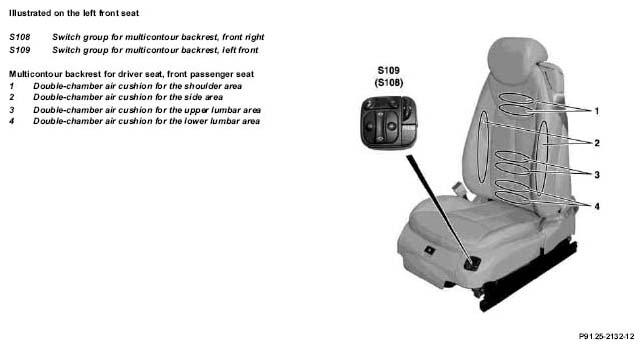

Fig 2: Identifying Switch Group For Right And Left Front Multi-Contour Backrest

Courtesy of MERCEDES-BENZ USA

	Manual filling and emptying of air in the air cushions in the multi-contour seat, function		GF91.25-P-2000R
	Dynamic filling and emptying of air in the air cushions in the multi-contour seat, function		GF91.25-P-2001R
	Adjust front multi-contour seats, function		GF91.25-P-2002R
