Front SAM Control Unit With Fuse And Relay Module Connector End View (N10/1, Conn. C4)

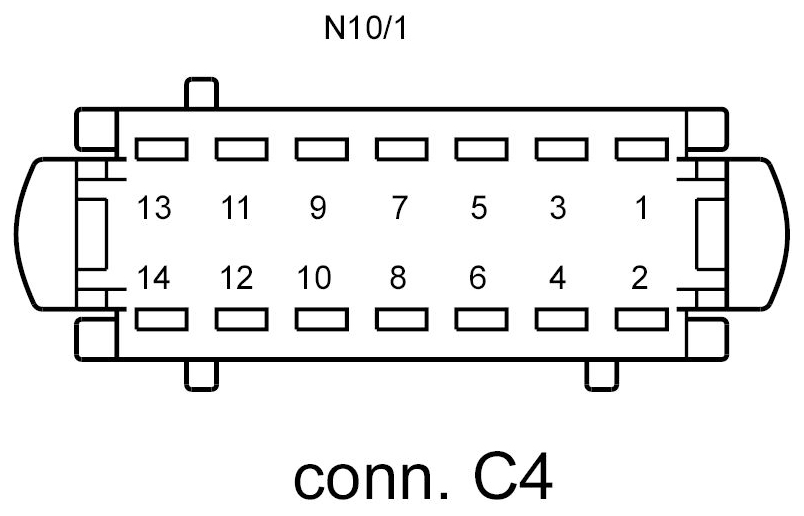

Fig 1: Front SAM Control Unit With Fuse And Relay Module Connector End View (N10/1, Conn. C4)
G11076594Courtesy of MERCEDES-BENZ USA
