Lower Control Panel Control Unit, Component Description - GF54.21-P-6060GN
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 as of model year 2016
MODEL 292

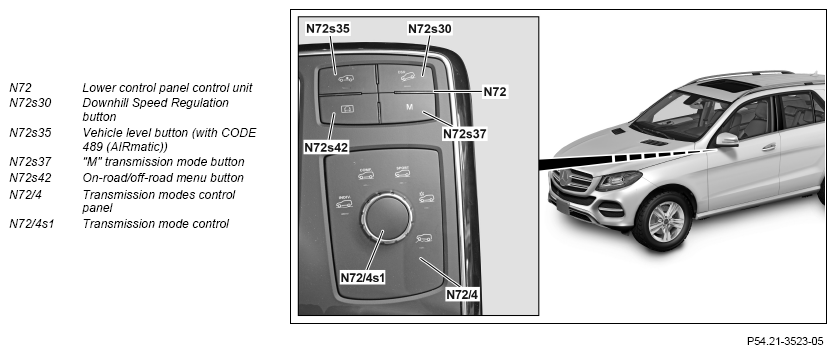

Vehicles without CODE 430 (On & Off-road package) shown on model 166.0

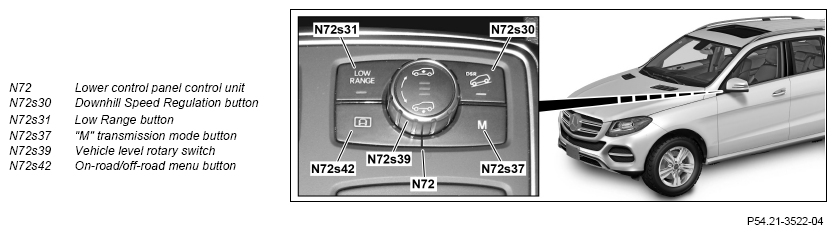

Vehicles with CODE 430 (On & Off-road package), shown on model 166.0
Location
The lower control panel control unit is located in the center console.
Task
The lower control panel control unit is connected over the center console switch LIN (LIN B12) to the SAM control unit (N10). The requests issued by the driver are read in by the SAM control unit over the center console switch LIN and sent to the interior CAN (CAN B).
The following functions are requested, depending on the equipment, by actuating the buttons located on the lower control panel control unit:
- Downhill Speed Regulation with speed setting adjustable to between v = 4 and 18 km/h by actuating the Downhill Speed Regulation button
- Raise and lower the vehicle level by pressing the vehicle level rotary switch
- Change from on-road ratio (high) to off-road ratio (low) by actuating the Low Range button
- Transmission mode over the transmission mode "M" button
- Level adjustment through pressing the vehicle level rotary switch
- Open and close menu by pressing On-/Off-road menu button
| Wiring diagram for upper control panel and lower control panel control unit | PE54.21-P-2118-97NBA |
