Adjust front multicontour seats, function - GF91.25-P-2002SX

MODEL 216.3, 221.0/1

with CODE (409) Left/right front multicontour seat

up to Model Year 8

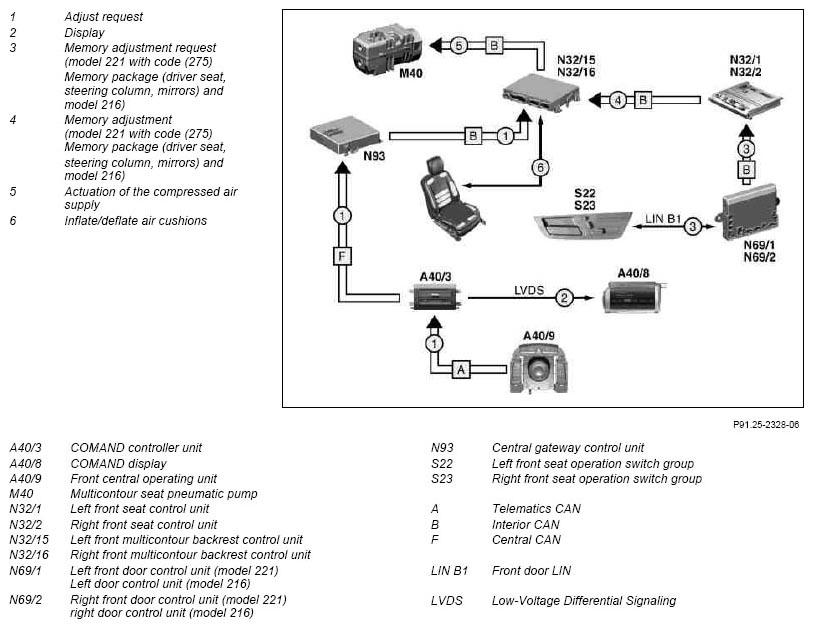

Fig 1: Front Multicontour Seats Function Diagram

Courtesy of MERCEDES-BENZ USA

Function requirements:

Terminal 15R ON or
Circuit 15 ON

Function

The multicontour seats (MCS [MKS]) can be individually configured menu-assisted over the front central operating unit. This is shown in the COMMAND display.

Pressing the multicontour seat quick select button (A40/9s4) in the front central operating unit activates the seat adjustment submenu in the COMMAND display.

The turn/push control (A40/9s11) can be used to adjust the following air cushions:

Air cushions in side areas of seat cushion
Air cushions in upper leg area of seat cushion
Air cushions in side areas of backrest
Air cushions in lumbar area (top, center and bottom) of backrest
Air cushions in shoulder area of backrest

On model 221 with code (275) Memory package (driver seat, steering column, mirrors) and on model 216, the current seat setting can be stored or called up using the seat operation switch group.

Additionally, the setting of the steering column and the outside mirrors is stored on the driver-side.

COMMAND controller unit, component description	A40/3 Model 221 without code (498) Japan version and without code (494) USA version	GF82.85-P-3136SX
	Model 221 with code (494) USA version	GF82.85-P-3136SXU
	Model 221 with code (498) Japan version	GF82.85-P-3136SXJ
Cockpit central display, component description	A40/8 Model 221	GF54.30-P-6100SX
Front central operating unit, component description	A40/9 Model 221	GF54.21-P-4500SX
Multicontour seat pneumatic pump (MCS), component description	M40	GF91.25-P-5205SX
Left front seat control unit, component description	N32/1	GF91.29-P-5230SX
Right front seat control unit, component description	N32/2	GF91.29-P-5240SX
Multicontour seat control unit (MCS), component description	N32/15, N32/16	GF91.25-P-5201SX
Driver-side front door control unit, component description	N69/1 Model 216	GF72.29-P-6000SC
Passenger-side front door control unit, component description	N69/2 Model 216	GF72.29-P-6010SC
Central gateway control unit, component description	N93	GF54.21-P-4170SX
Front seat adjustment switch group, component description	S22, S23	GF91.29-P-5220SX
