Coolant temperature sensor, location/task/design/function - GF07.04-P-5026M
ENGINES 275.953 in MODEL 216, 221 up to Model Year 08/modification year 07
ENGINES 275.982 in MODEL 216, 221 up to Model Year 08/modification year 07
| Coolant temperature sensor position | GF07.04-P-5026-02M | |
| Coolant temperature sensor task | Detects the coolant temperature and sends a signal to the engine control unit | |

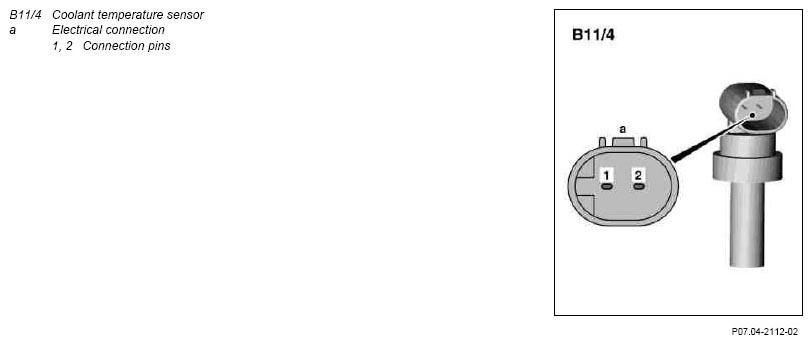

| Coolant temperature sensor, design | Plastic housing with integrated NTC resistor and a 2-pin, slanted plug connection. It is inserted into a bore hole and sealed with an O-ring. Fixing via a bracket. | |
| Coolant temperature sensor function | GF07.04-P-5026-04M |
