Remove/install pedal assembly - AR29.10-P-0300SX

MODEL 216, 221 (except, 221.095/195) with TRANSMISSION 722.6/9

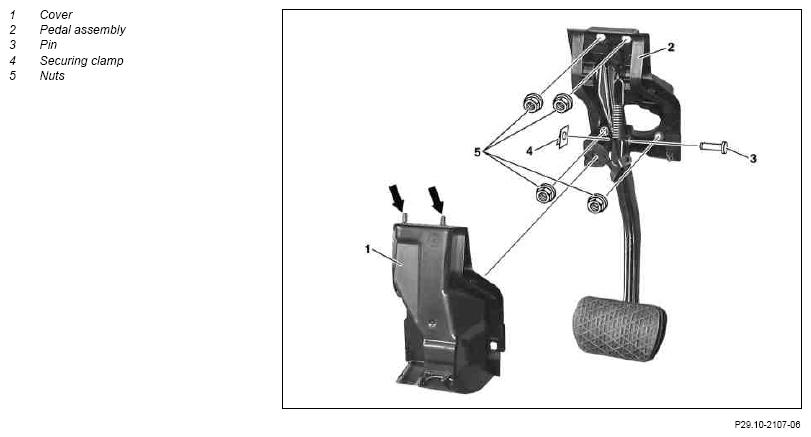

Fig 1: Identifying Pedal Assembly Remove/Install Components

G10109050

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Remove left cover below instrument panel		AR68.10-P-1500SX
2	Unclip cover (1) from hold-down clips and remove downwards	Insert pins (arrows) into the notches on the pedal assembly (2).
3	Remove safety clip (4) and pull out pin (3)
4	Unscrew nuts (5).		*BA29.10-P-1001-02F
5	Open engine hood
6	Carefully pull brake booster towards direction of travel and remove pedal assembly (2)	Aid of helper required.
7	Install in the reverse order

PEDALS, BEARING BRACKET

Number	Designation		Model 216	Model 221
BA29.10-P-1001-02F	Nut, brake pedal assembly to body	Nm	22	22
