ME-SFI part load/full load operation, function - GF07.61-P-3016M

ENGINES 275.950 in MODEL 215, 220

ENGINES 275.951 in MODEL 230 up to Model Year 08 /Modification Year 07

ENGINES 275.953 in MODEL 216, 221 up to Model Year 08 /modification year 07

ENGINES 275.954 in MODEL 230 up to Model Year 08 /Modification Year 07

ENGINES 275.980 in MODEL 215, 220

ENGINES 275.981 in MODEL 230 up to Model Year 08 /Modification Year 07

ENGINES 275.982 in MODEL 216, 221 up to Model Year 08 /modification year 07

ENGINES 285.950 in MODEL 240

ENGINES 285.980 in MODEL 240

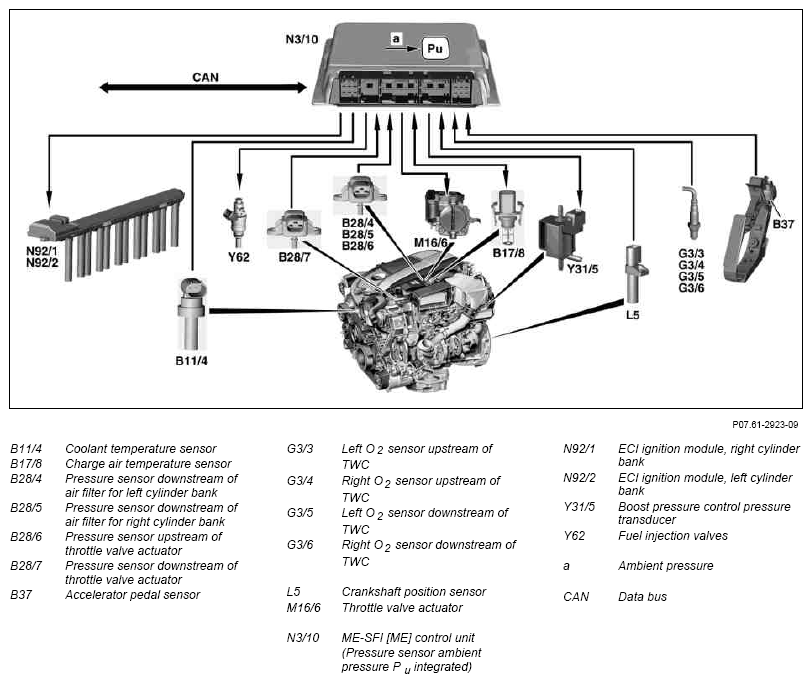

Fig 1: Identifying ME-SFI Part Load/Full Load Operation Function Diagram

Courtesy of MERCEDES-BENZ USA

Partial load operation:

When the engine is at operating temperature, optimal exhaust emission values and low-cost fuel consumption are assured in combination with the lambda control.

Full load operation

Maximum engine torque is reached when the accelerator pedal is depressed by more than 90 %. For this purpose, the injection timing is extended accordingly and the maximum boost pressure is built up.

The particular quantity of fuel is metered to the engine in line with the performance map.

The fuel quantity depends on:

Accelerator pedal sensor position
Boost pressure
Engine speed
Engine load
Coolant temperature
Boost air temperature
Lambda control
Correction programming with STAR DIAGNOSIS

ME-SFI control unit, location/task/design/ function		GF07.61-P-5000M
Coolant temperature sensor, location/task/ design/function		GF07.04-P-5026M
Charge air temperature sensor, location/task/ function		GF07.04-P-5038M
Crankshaft position sensor, location/task/ design/function		GF07.04-P-4116M
Pressure sensor downstream of air filter, location/task/function		GF07.04-P-5041M
Pressure sensor upstream of throttle valve actuator, location/task/function		GF07.04-P-5048M
Pressure sensor downstream of throttle valve actuator, location/task/function		GF07.04-P-5049M
Accelerator pedal sensor, location/task/ design/function		GF30.20-P-4010M
Throttle valve actuator, location/task/design/ function		GF30.22-P-4101M
Fuel injection valve, location/task/design/ function		GF07.03-P-5004M
Correction programming, function		GF07.61-P-3031M
ME-SFI ignition system, function		GF15.12-P-0001M
ECI ignition system, function		GF15.15-P-3000M
ME fuel supply, function	Model 215, 220 with engine 275.950 Model 230 with engine 275.951/954 Model 240 with engine 285.950	GF07.61-P-3004M
	Model 215, 220 with engine 275.980 Model 230 with engine 275.981 Model 240 with engine 285.980	GF07.61-P-3004MA
	Model 216, 221 with engine 275.953/982	GF07.61-P-3004MS
ME-SFI lambda control, function		GF07.61-P-4022M
Boost pressure control, function		GF09.40-P-3000M
