Component description for CDI control unit - GF07.16-P-6000OHL
ENGINE 642.9 in MODEL 221.0 as of Model Year 09 /Modification Year 08
ENGINE 642.9 in MODEL 221.1 as of Model Year 09 /Modification Year 08
Location

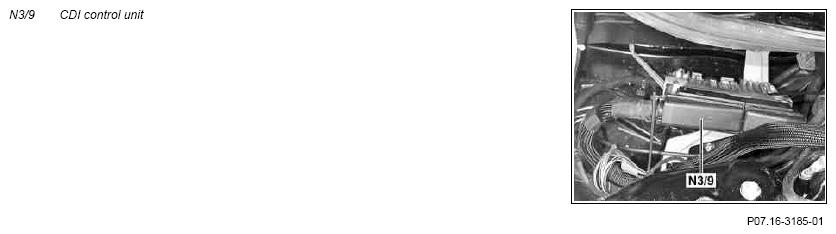

The CDI control unit is built into the engine compartment at the right in front of the windshield.
Task
The tasks of the CDI control unit are subdivided into the following partial tasks:
- Controlling of the common rail diesel injection (CDI) function
- Input and output signals
Control of CDI function
The CDI control unit controls the following CDI functions:
- Fuel supply
- Glow functions
- Injection control
- Exhaust gas cleaning
- Boost pressure control
- Refrigerant compressor switch-off (A9)
- Shutoff control
The CDI control unit is equipped with a fault memory, which can be read out via STAR DIAGNOSIS.
The CDI control unit has an internal atmospheric pressure sensor.
Input and output signals
Signal inputs and outputs
Direct input signals
- Circuit 30
- Circuit 31
- Circuit 87
- Oil temperature sensor (B1)
- Left hot film mass air flow sensor (B2/6)
- Intake air temperature sensor (B2/6b1)
- Right hot film mass air flow sensor (B2/7)
- Intake air temperature sensor (B2/7b1)
- Rail pressure sensor (B4/6/)
- Charge pressure sensor (B5/1)
- Camshaft Hall sensor (B6/1)
- Coolant temperature sensor (B11/4)
- Charge air temperature sensor (B17/8)
- Temperature sensor upstream of diesel particulate filter (B19/9) for code (474) Particulate filter
- Temperature sensor upstream of turbocharger (B19/11)
- Pressure sensor downstream of air filter (B28/5)
- Pressure differential sensor (DPF) (B28/8), with code (474) particulate filter
- Accelerator pedal sensor (B37)
- Fuel temperature sensor (B50)
- Exhaust back pressure sensor (B60)
- Crankshaft Hall sensor (B70)
- Fuel filter condensation sensor with heating element (B76/1), with code (U41) fuel/water separator and lubrication pack
- O2 sensor upstream of CAT (G3/2)
- Oil level check switch (S43)
Direct output signals
- Heater for O2 sensor upstream of CAT
- Throttle valve actuator (M16/6)
- Intake port shutoff motor (M55)
- Terminal 15 relay, starter (N10/1kJ)
- Fuel pump relay (N10/2kS)
- Vent line heater element (R39/1)
- LH exhaust gas recirculation positioner (Y27/9)
- Pressure regulator valve (Y74)
- Fuel injectors (Y76)
- Boost pressure actuator (Y77/1)
- Quantity control valve (Y94)
Engine compartment CAN signals
- Intelligent servo module for DIRECT SELECT (A80)
- Control unit for fully integrated transmission control (Y3/8n4)
Chassis CAN signals
- Restraint system control unit (N2/7)
- ESP control unit (N47-5)
- EIS [EZS] control unit (N73)
- Steering column tube module (N80)
Drive LIN signals
- Alternator (G2)
- Glow time output stage (N14/3)
| Wiring diagram for common rail diesel injection (CDI) control unit | N3/9, engine side | PE07.16-P-2101-99SAA | |
| N3/9, vehicle side | PE07.16-P-2101-99SAB |
