Remove/install radar sensor - AR30.30-P-1210CW
MODEL 204.0/2/3 with CODE (233) Distronic Plus
Shown on model 204.0
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Switch off ignition | ||
| 2 | Remove front bumper. | AR88.20-P-2000-01CW | |
| AR88.20-P-2000-03CW | |||
| Model 204.0/2 | *BE60.00-P-1001-01U | ||
| Model 204.3 | *BE60.00-P-1001-01W | ||
| Fig 2 | |||
| Fig 3 | |||

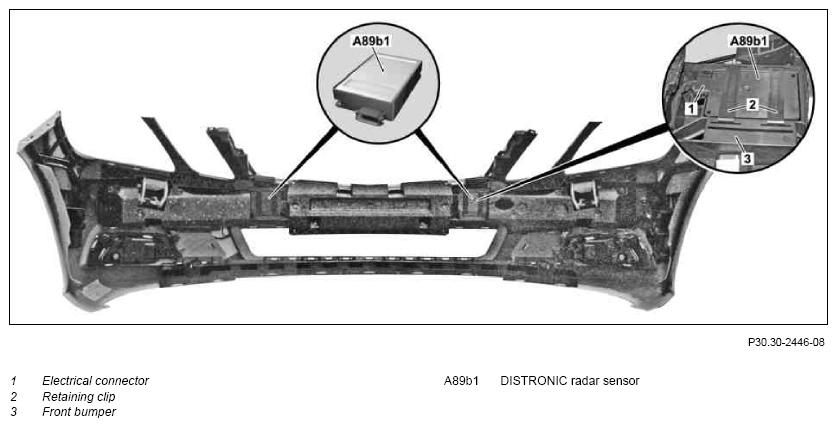

| 3 | Pry off mounting frame bow (2) from the front bumper (3) using a suitable tool | ||
| 4 | Unlock and detach electrical connections (1) on DISTRONIC radar sensor (A89b1) | ||
| 5 | Remove DISTRONIC radar sensor (A89b1) | ||
| 6 | Install in the reverse order | ||
| 7 | Connect Star Diagnosis, read out fault memory and erase if necessary Connect STAR DIAGNOSIS and read out fault memory |
AD00.00-P-2000-04A |
CHECK VALUES FOR GAPS
| Number | Designation | Model 204.0 | Model 204.2 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1001-01U | Gap dimension | Engine hood to fender | Dimension "A" | mm | 4 (± 1) | 4 (± 1) |
| Engine hood to headlamp | Dimension "B" | mm | 4 (± 1) | 4 (± 1) | ||
| Engine hood to radiator grille | Dimension "C" | mm | 6 (± 1) | 6 (± 1) | ||
| Engine hood to bumper | Dimension "D" | mm | 4 (± 1.5) | 4 (± 1.5) | ||
| Engine hood to A-pillar | Dimension "E" | mm | 4.5 (± 1) | 4.5 (± 1) | ||
| Bumper to headlamp | Dimension "F" | mm | 3 (± 1) | 3 (± 1) | ||
| See picture | AR60.00-P-0700-01CW | AR60.00-P-0700-01CW | ||||
CHECK VALUES FOR GAPS
| Number | Designation | Model 204.3 | |||
|---|---|---|---|---|---|
| BE60.00-P-1001-01W | Gap dimension | Engine hood to fender | Dimension "A" | mm | 4 (± 1) |
| Engine hood to headlamp | Dimension "B" | mm | 4 (± 1) | ||
| Engine hood to bumper | Dimension "C" | mm | 6 (+1/-2) | ||
| Engine hood to A-pillar | Dimension "D" | mm | 4.5 (+2/-1) | ||
| Bumper to headlamp | Dimension "E" | mm | 2.5 (± 1.5) | ||
| See picture | AR60.00-P-0700-01CW | ||||
