O2 sensors, location - GF07.04-P-4103-02M

Shown is model 240

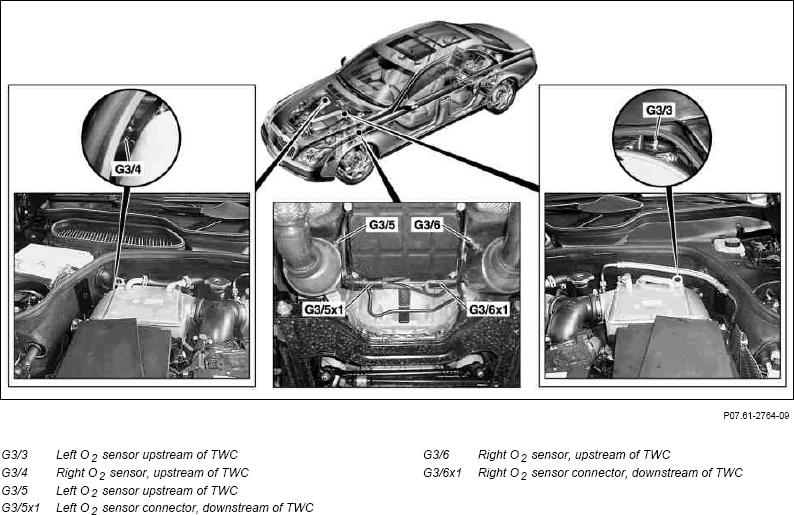

Fig 1: Locating O2 Sensors

G07618517

Courtesy of MERCEDES-BENZ USA
