Sun sensor, component description - GF83.57-P-2128SX
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2011 Mercedes-Benz S65, 2011 Mercedes-Benz S600, 2011 Mercedes-Benz S550, 2010 Mercedes-Benz S65, and 2010 Mercedes-Benz S63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 216.3, 221.0 /1 up to Model Year 8

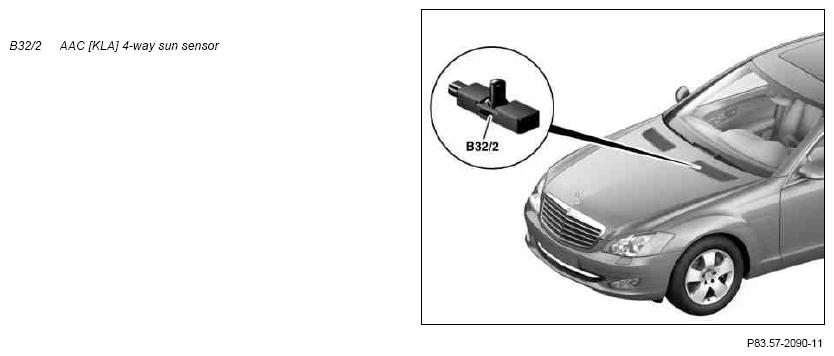

Shown on model 221.0
Location
The sun sensor is located in the left air inlet on the engine hood.
Task
The sun sensor records the intensity and the angle of incidence of the solar radiation on the vehicle. The interior temperature and blower speed are adapted according to the intensity.
In the event of one-sided solar radiation, an adequate temperature difference is set between the left and the right regulated specific temperatures.
The sun sensor data are read in via the AC bus by the AAC [KLA] control unit (N22/1).
