Refrigerant pressure sensor, component description - GF83.40-P-2193SX
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2011 Mercedes-Benz S65, 2011 Mercedes-Benz S600, 2011 Mercedes-Benz S550, 2010 Mercedes-Benz S65, and 2010 Mercedes-Benz S63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 216.3, 221.0 /1 up to Model Year 8

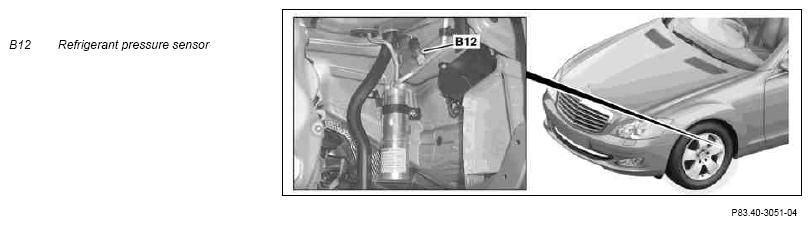

Shown on model 221.0
Location
The refrigerant pressure sensor is located in the rear in the left front wheelhouse.
Task
The refrigerant pressure sensor is used for measuring the refrigerant pressure.
The value determined by the refrigerant pressure sensor is directly read in by the AAC [KLA] control unit (N22/1).
