Condenser, component description - GF83.40-P-2188SX
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2011 Mercedes-Benz S65, 2011 Mercedes-Benz S600, 2011 Mercedes-Benz S550, 2010 Mercedes-Benz S65, and 2010 Mercedes-Benz S63. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 216.3, 221.0 /1 up to Model Year 8

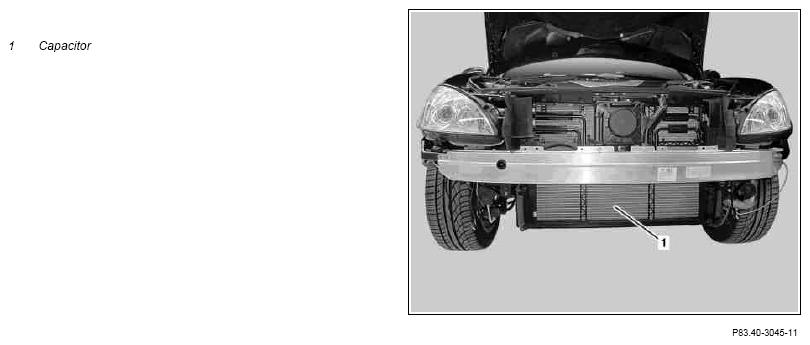

Shown on model 221.0
Location
The condenser is located behind the radiator grille, immediately in front of the radiator.
Function
The hot refrigerant compressed by the refrigerant compressor flows into the condenser from above. Coiled pipes and lamellae absorb this heat extremely rapidly and give it off into the outside air.
This in turn cools the refrigerant. While it is cooling down to a specific, pressure-sensitive temperature, the refrigerant condenses and is liquefied. The liquid refrigerant exits at the bottom of the condenser and flows into the fluid reservoir.
