WSS (Weight Sensing System) sensor, component description - GF91.60-P-4036GZ
MODEL 164 with CODE (494) USA version up to Model Year 08

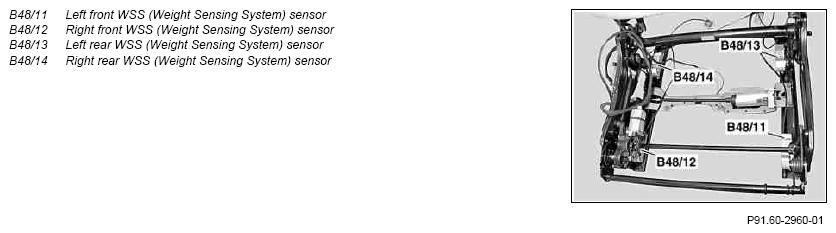

The WSS (Weight Sensing System) sensors,
- left front WSS sensor (Weight Sensing System) (B48/11),
- right front WSS sensor (Weight Sensing System) (B48/12),
- left rear WSS sensor (Weight Sensing System) (B48/13) and
- right rear WSS (Weight Sensing System) sensor (B48/14),
are located in the front passenger seat frame.
The sensors record the applied weight. The recorded values are sent to the WSS (Weight Sensing System) control unit (N2/13) and called on and evaluated for the triggering of the restraint system.
