Pressure sensor, component description - GF91.60-P-4109GZ
MODEL 164, 251 up to Model Year 08

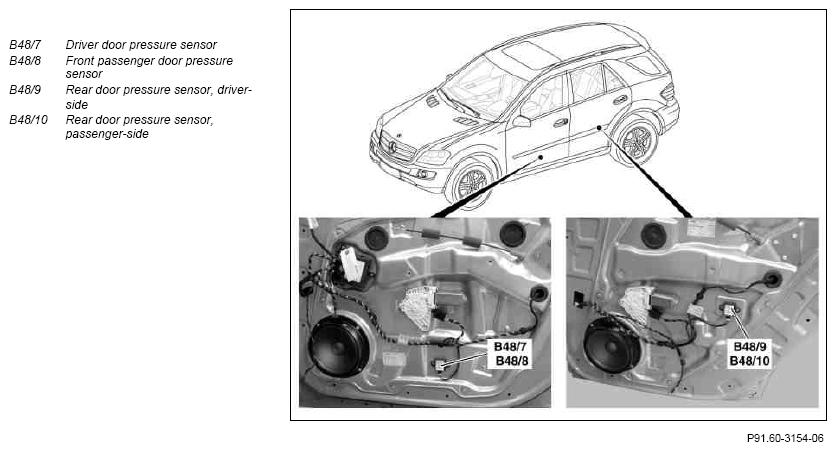

Shown on model 164.1
Location
The pressure sensors are located behind the respective door trim.
Task
To detect a side impact in the door area, the pressure sensors measure the air pressure values inside the doors. If the air pressure value increases significantly in one door (e.g. when the door skin is pressed in from outside), the restraint systems control unit (N2/7) triggers the respective sidebag or windowbag in the impact area.
Scope of tasks
- After a successful self-test, the pressure sensors confirm success by transmitting a signal to the restraint systems control unit.
- Upon request of the restraint systems control unit, the measuring range and the sensitivity of the pressure sensors are transmitted, and the system checks whether they match the programmed equipment. The production data can be output via STAR DIAGNOSIS.
