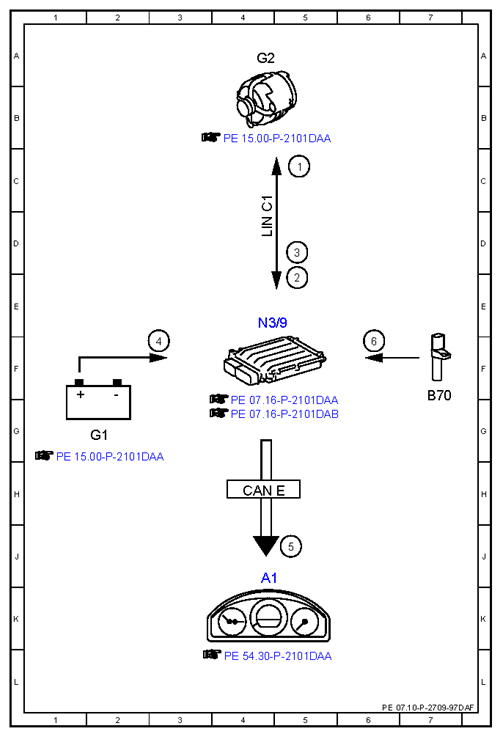

Electrical function schematic, alternator interface - PE07.10-P-2709-97DAF
ENGINE 642.8 in MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Alternator, request | 5C |
| 2 | Alternator, status | 5E |
| 3 | Circuit 61, status | 5D |
| 4 | Circuit 30, status | 3F |
| 5 | Instrument cluster, message | 5J |
| 6 | Crankshaft Hall sensor, signal | 6F |
| A1 | Instrument cluster | 4J |
| B70 | Crankshaft Hall sensor | 7G |
| CAN E | Chassis CAN | 4H |
| G1 | On-board electrical system battery | 2G |
| G2 | Alternator | 4A |
| LIN C1 | Drive train LIN | 4D |
| N3/9 | CDI control unit | 4E |
