Remove/install front acceleration sensor - AR91.60-P-0750TX

MODEL 219.3

Shown on model 219.375

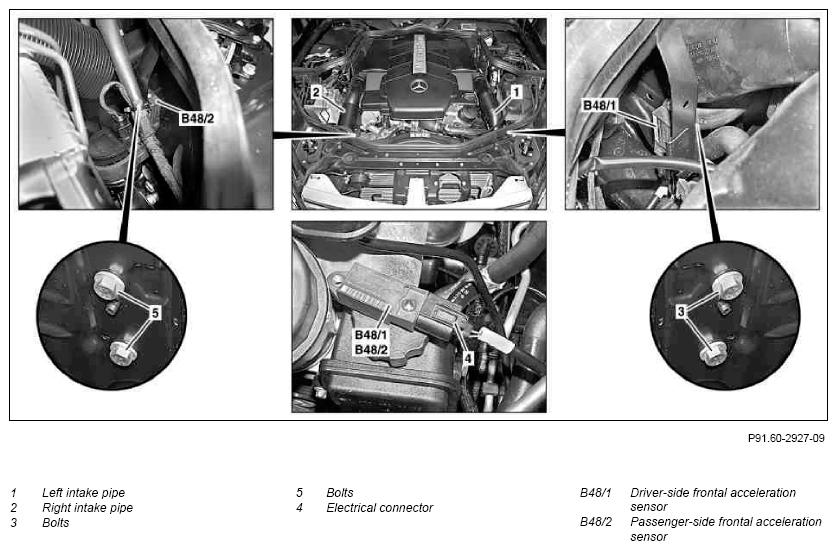

Fig 1: Identifying Front Acceleration Sensor Remove/Install Components

G10768824

Courtesy of MERCEDES-BENZ USA

	Remove/Install
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Switch off the ignition and remove the transmitter key from the EIS control unit	In vehicles with Code (889) Keyless Go: Press Keyless Go start/stop button repeatedly until the ignition is switched off. Remove the transmitter key from the vehicle and store at a location that is beyond the transmitter range (at least 2 m).
2	Open engine hood and move to upright position		AR88.40-P-1000TX
3.1	Removing left intake pipe (1)	When removing driver-side frontal acceleration sensor (B48/1).
4.1	Remove right intake pipe (2)	When removing passenger-side frontal acceleration sensor (B48/2).
5.1	Unscrew bolts (3), disconnect electrical connector (4) and remove driver-side frontal acceleration sensor (B48/1)	When removing driver-side frontal acceleration sensor (B48/1).
5.1			*BA91.60-P-1007-01J
6.1	Unscrew bolts (5), disconnect electrical connector (4) and remove front passenger side frontal acceleration sensor (B48/2)	When removing front passenger side frontal acceleration sensor (B48/2).
6.1			*BA91.60-P-1007-01J
7	Install in the reverse order
8	Read out fault memory
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04TX
		STAR DIAGNOSIS, diagnosis system	*WH58.30-Z-1048-13A

AIRBAG

Number	Designation		Model 219.3
BA91.60-P-1007-01J	Bolt, frontal acceleration sensor to front module support	Nm	7

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS, diagnosis system; Compact Passenger Car	6511 1801 00
