Supplemental restraint systems control unit, location/task/design - GF91.60-P-4018SK: Notes
MODELS 171.4

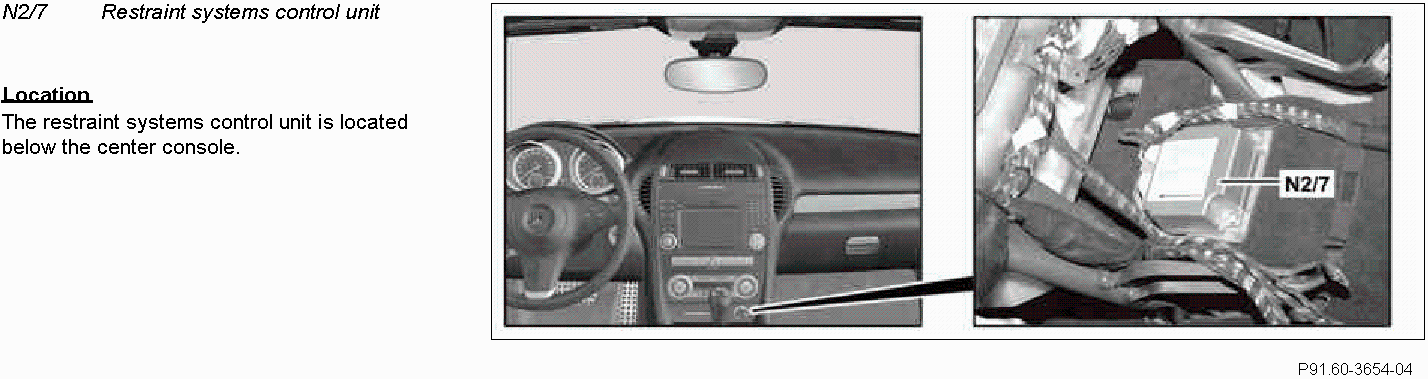

| Restraint systems control unit position | The restraint systems control unit (N2/7) is located below the center console. | |
| Restraint systems control unit, task | -2008 | GF91.60-P-4018-01SK |
| Component description | 2009- | GF91.60-P-4048RC |
| Restraint systems control unit design | The aluminum housing and the electrical connection of the restraint systems control unit (N2/7) are designed to rule out most malfunctions due to interference. |
