Remove/install sensor for sidebag/windowbag - AR91.60-P-0730GZ

MODEL 164

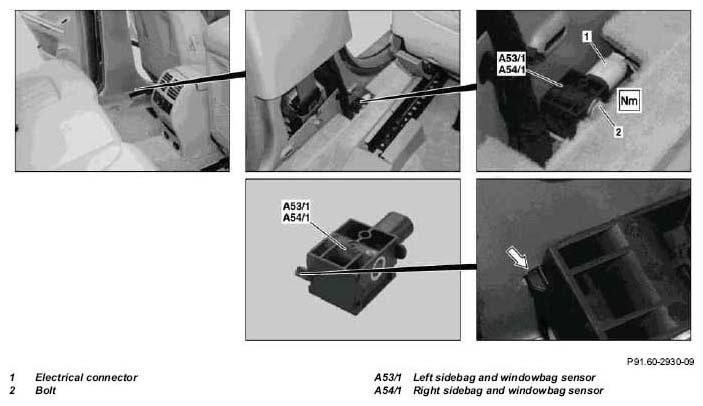

Fig 1: Identifying Sensor For Sidebag/Windowbag Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove front and rear door sill moldings	Left or right side.	AR68.30-P-4100GZ
2	Remove paneling on B-pillar	Bottom left or right.	AR68.30-P-4700GZ
3	Disconnect electrical connector (1)
4	Push floor covering to one side and unscrew bolt (2)		*BA91.60-P-1004-01H
		Mounting wedge	Figure
5	Remove left sidebag and windowbag sensor (A53/1) or right sidebag and windowbag sensor (A54/1)	Installation:  Insert the pin from the left sidebag and windowbag sensor (A53/1) or the right sidebag and windowbag sensor (A54/1) for positioning into the bore of the inner longitudinal member (arrow).
6	Install in the reverse order

AIRBAG

Number	Designation		Model 164.1/8
BA91.60-P-1004-01H	Bolt, sidebag and windowbag sensor to inner longitudinal member	Nm	8

Fig 2: Identifying Wedge Tool (110 590 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
