Remove/install seat occupancy recognition sensor - AR91.60-P-0720TA

MODEL 211.0/2/6 as of 1.7.04

Front passenger seat

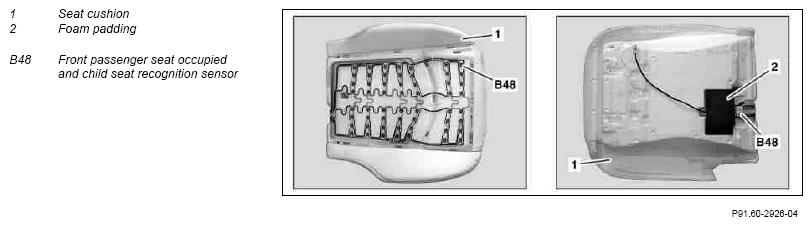

Fig 1: Identifying Seat Occupancy Recognition Sensor Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove seat cushion cover		AR91.10-P-3312TA
2	Remove foam padding (2)	Installation:  Install new foam padding (2).
3	Remove passenger seat occupied and child seat recognition sensor (B48) from seat cushion upholstery (1)	Do not kink front passenger seat occupied and child seat recognition sensor (B48) and release carefully from seat cushion upholstery (1) to ensure it is not damaged. Installation:  Installation position must be observed. Place and align front passenger seat occupied and child seat recognition sensor (B48) on center of seat cushion upholstery (1).
4	Install in the reverse order
