Pneumatic pump for dynamic seat control, location/task - GF91.25-P-2115T
MODEL 211.0/2/6 with CODE (433) Left dynamic seat, incl. multicontour seat with CODE (434) Right dynamic seat, incl. multicontour seat
Shown on model 211.0
In the event of a thermal overload of the pump of > 130 degrees Celsius, it will switch off automatically to prevent further damage.

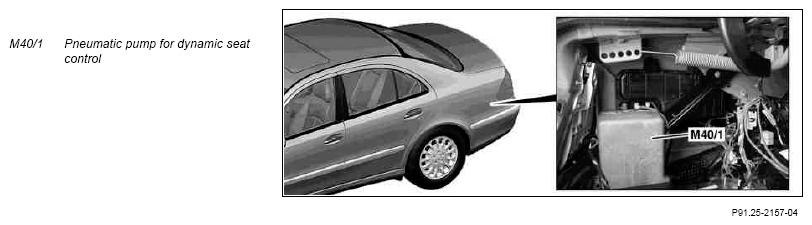

| Pneumatic pump for dynamic seat control, location | The pneumatic pump for dynamic seat control (M40/1) is located at the left rear in the luggage compartment. |
| Pneumatic pump for dynamic seat control, task | The pneumatic pump for dynamic seat control (M40/1) generates the compressed air required to inflate the air cushions. |
