Remove/install front seat backrest - AR91.10-P-1465SC

MODEL 216

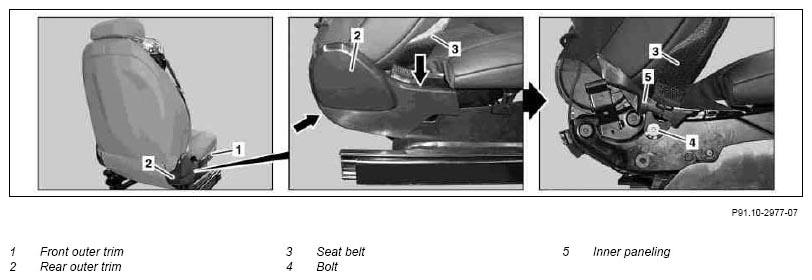

Fig 1: Identifying Front Seat Backrest Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown on right front seat

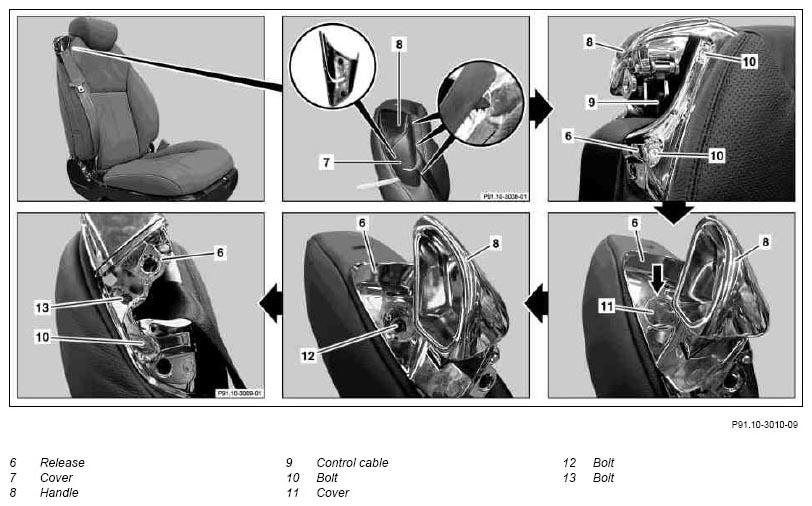

Fig 2: Identifying Front Seat Backrest Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown on right front seat

	Remove/install
1	Remove outer front paneling (1) and outer rear paneling (2) at left or right front seat		AR91.10-P-1200SC
2	Remove bolt (4) and remove seat belt (3) from inner paneling (5)	Use suitable tool to secure lock washer on bolt (4) to prevent twisting.
			*BA91.40-P-1001-01O
3	Unclip covering (7)
4	Fold front seat backrest toward front, lift up handle (8) and unhook Bowden cable (9)		Fig 3
5	Remove bolts (10)
6	Unclip cover (11) (arrow) and remove bolt (12)
7	Remove bolt (13)
8	Remove release (6)
9	Install in the reverse order

Fig 3: Identifying Assembly Tool (216 589 00 59 00)

Courtesy of MERCEDES-BENZ USA
