Remove/install crankshaft position sensor - AR15.12-P-2133TMG
ENGINE 156.983 in MODELS 211.077/277, 219.377
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Open engine hood | Model 211 | AR88.40-P-1000T |
| Model 219 | AR88.40-P-1000TX | ||
| 2 | Remove front engine cover | ||

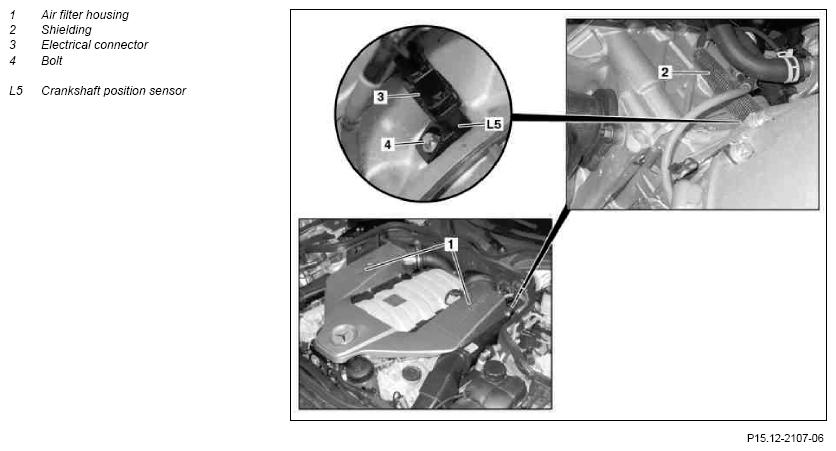

| 3 | Remove air filter housing (1). | AR09.10-P-1150TMG | |
| 4 | Push shielding (2) upwards | ||
| 5 | Disconnect electrical connector (3) from crankshaft position sensor (L5) | ||
| 6 | Unscrew bolt (4) | *BA15.12-P-1001-01K | |
| 7 | Remove crankshaft position sensor (L5) | ||
| 8 | Install in the reverse order | ||
| 9 | Read out fault memory and erase if required | STAR DIAGNOSIS, diagnosis system | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the running engine | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 10 | Carry out engine test run |
ECI IGNITION SYSTEM
| Number | Designation | Engine 156, 159 | ||
|---|---|---|---|---|
| BA15.12-P-1001-01K | Crankshaft position sensor on crankshaft housing | M6 | Nm | 8 |
