Supplemental restraint system (SRS), component networking - GF91.60-P-0002-02SCU

MODEL 216.3 with CODE (494) USA version up to Model Year 8

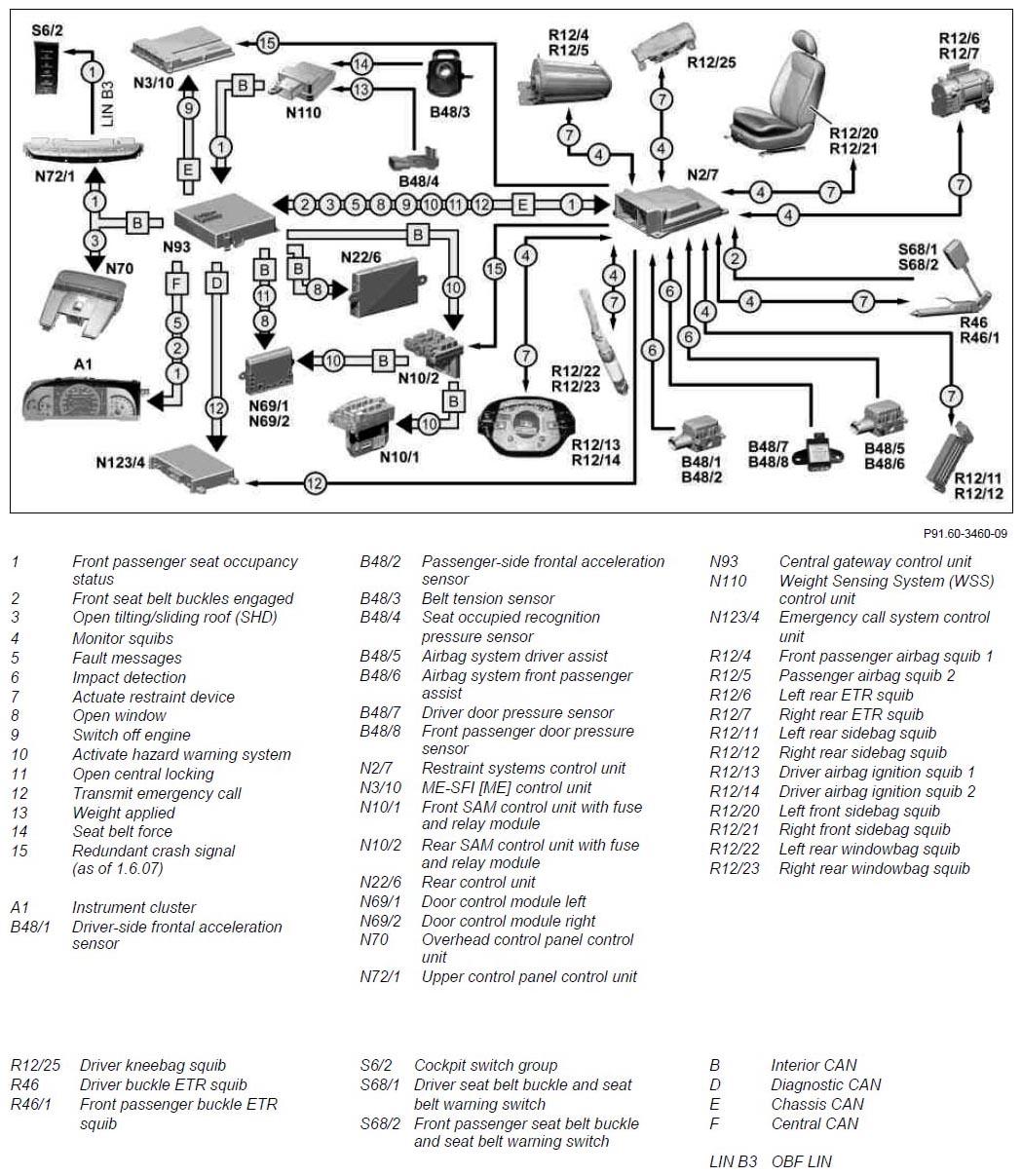

Fig 1: Networking Supplemental Restraint System Components
G07305034Courtesy of MERCEDES-BENZ USA
