Dynamic seat, location of components - GF91.25-P-0002-01LE

MODEL 216.3 with CODE (432) Left and right dynamic multicontour seat as of Model Year 2009 /AEJ 08

Shown on model 221.0 (W221) YoM 08 / model year 2009

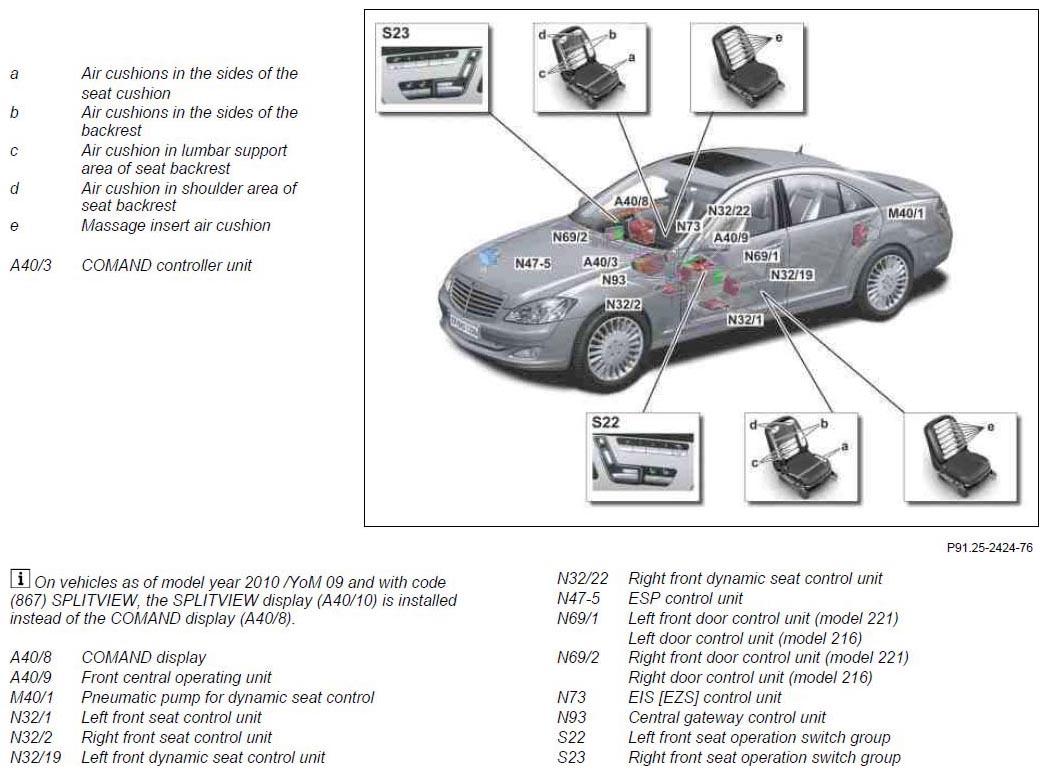

Fig 1: Locating Dynamic Seat Components
G07304976Courtesy of MERCEDES-BENZ USA
