Switching on Airscarf system, function - GF91.30-P-2010SK

MODEL 171.4 with CODE (403) AIRSCARF system

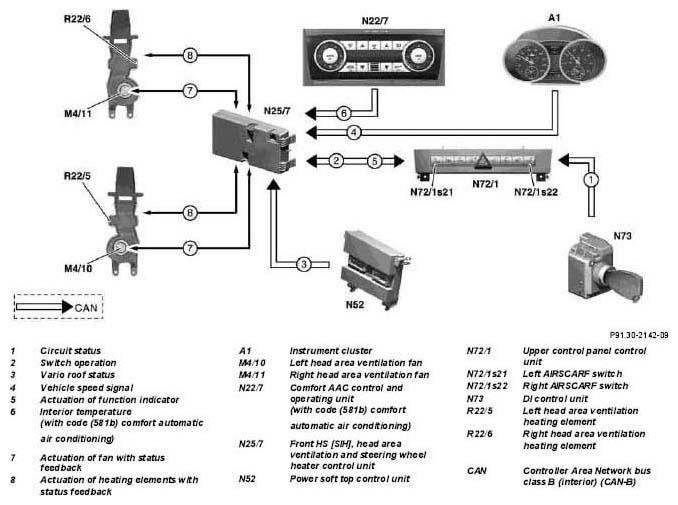

Fig 1: Airscarf System Communication Diagram
G05034188Courtesy of MERCEDES-BENZ USA

Function requirements

Function

The actuation of the left AIRSCARF switch (N72/1s21) or the right AIRSCARF switch (N72/1s22) is input by the upper control panel control unit (N72/1) and sent to the CAN-B (CAN).

Button operation Function indicator Actuation
Once Heating stage 3 on 3 LEDs
Twice Heating stage 2 on 2 LEDs
Three times Heating stage 1 on 1 LED
Four times Off None

The front HS [SIH], head area ventilation and steering wheel heater control unit (N25/7), depending on the request, actuates the following components:

or:

IMPORTANT The left head area ventilation fan (M4/10) and right head area ventilation fan (M4/11) are switched on with a delay of approx. 10 s to prevent voltage peaks.

The selected heating stage is sent cyclically by the front HS [SIH], head area ventilation and steering wheel heater control unit (N25/7) to CAN-B (CAN).

The upper control panel control unit (N72/1) as a function of the message actuates the LEDs in the left AIRSCARF switch (N72/1s21) or right AIRSCARF switch (N72/1s22).

Actuation of heating

The 3 heating stages are implemented by a pulsed actuation of the voltage for the left head area ventilation heating element (R22/5) or right head area ventilation heating element (R22/6)

Actuation of ventilation

The left head area ventilation fan (M4/10) and the right head area ventilation fan (M4/11) are supplied with power as a function of the selected heating stage.

IMPORTANT With the Vario roof open and as a function of the ground speed (signal from instrument cluster (A1)), the speed of the left head area ventilation fan (M4/10) or the right head area ventilation fan (M4/11) is increased in the particular heating stages by an increase in voltage.

It is possible to switch the Airscarf system on and off and to a different setting if the function prerequisites are met.

Airscarf system switch, location/task   GF91.30-P-2102SK
Airscarf system fan, location/task   GF91.30-P-2100SK
Airscarf system heating element, location/ task   GF91.30-P-2101SK
Seat heater/head area ventilation/ steering wheel heater control unit, location/task   GF91.30-P-3008SK
Upper control panel control unit, location/task/ design/function   GF54.21-P-4105SK
Electronic ignition switch control unit, location/purpose   GF80.57-P-4120SK
Vario roof control unit, location/task   GF77.39-P-3310SK
Control and operating module for comfort automatic air conditioning, location/purpose On vehicles with code (581b) convenience automatic air conditioning GF83.40-P-2181SK
