Seat occupied recognition system with automatic child seat recognition, location/task/design/function - GF91.60-P-4008SK: Notes

MODEL 171.4 up to 31.5.06 with CODE (494) USA version

MODEL 171.4 except CODE (494) USA version

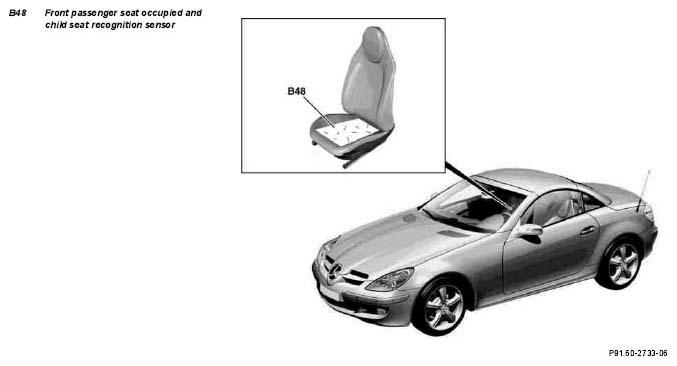

Fig 1: Identifying Front Passenger Seat Occupied And Child Seat Recognition Sensor
G05034209Courtesy of MERCEDES-BENZ USA
Seat occupied recognition sensor with automatic child seat recognition, location The passenger seat occupied and child seat recognition sensor (B48) is integrated into the seat cushion on the front passenger seat.
Seat occupied recognition sensor with automatic child seat recognition, task Determination of front seat occupation and recognition of a child seat with installed transponders and its direction of installation.
Seat occupied recognition sensor with automatic child seat recognition, design   GF91.60-P-4008-02SK
Seat occupied recognition sensor with automatic child seat recognition - function   GF91.60-P-4008-03SK
