PRE-SAFE, location of components - GF91.40-P-0001-01SC

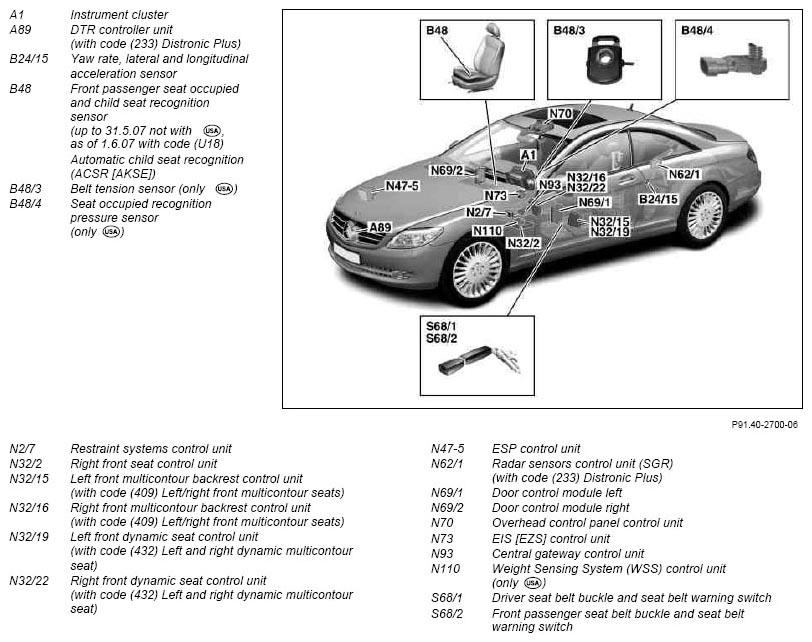

Fig 1: Locating Pre-Safe Components

G07687235

Courtesy of MERCEDES-BENZ USA
