Dynamic seat, networking of components - GF91.25-P-0002-02SX

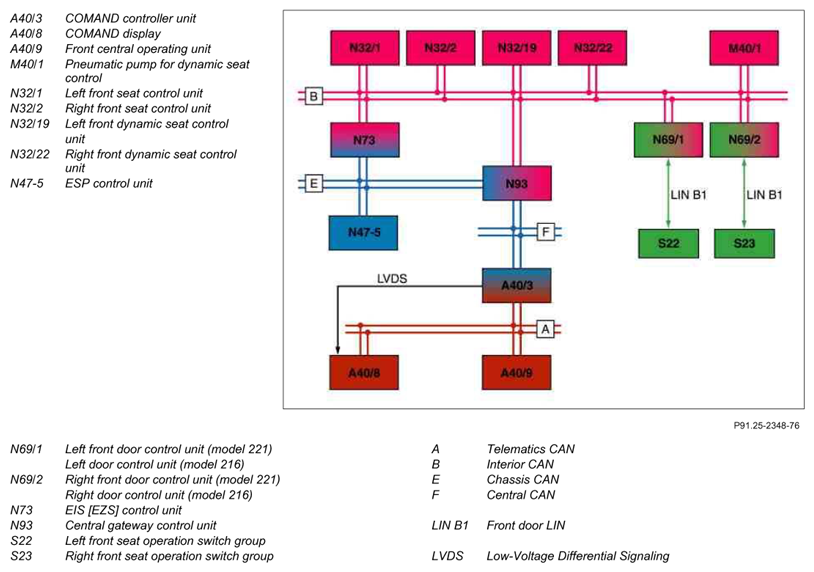

Fig 1: Networking Dynamic Seat Components

G07601662

Courtesy of MERCEDES-BENZ USA
